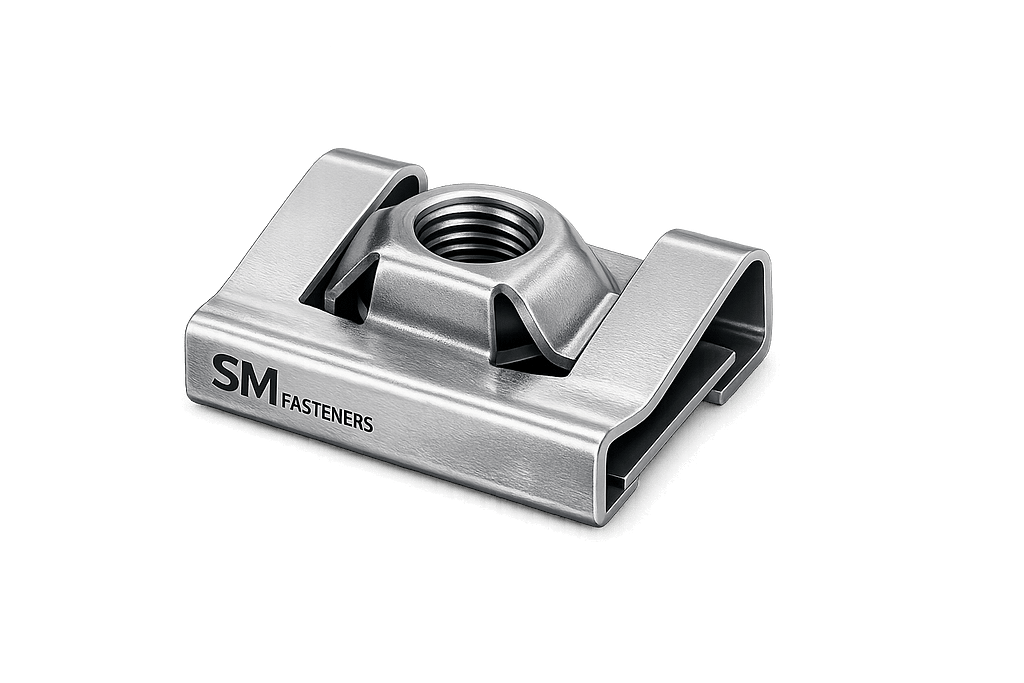

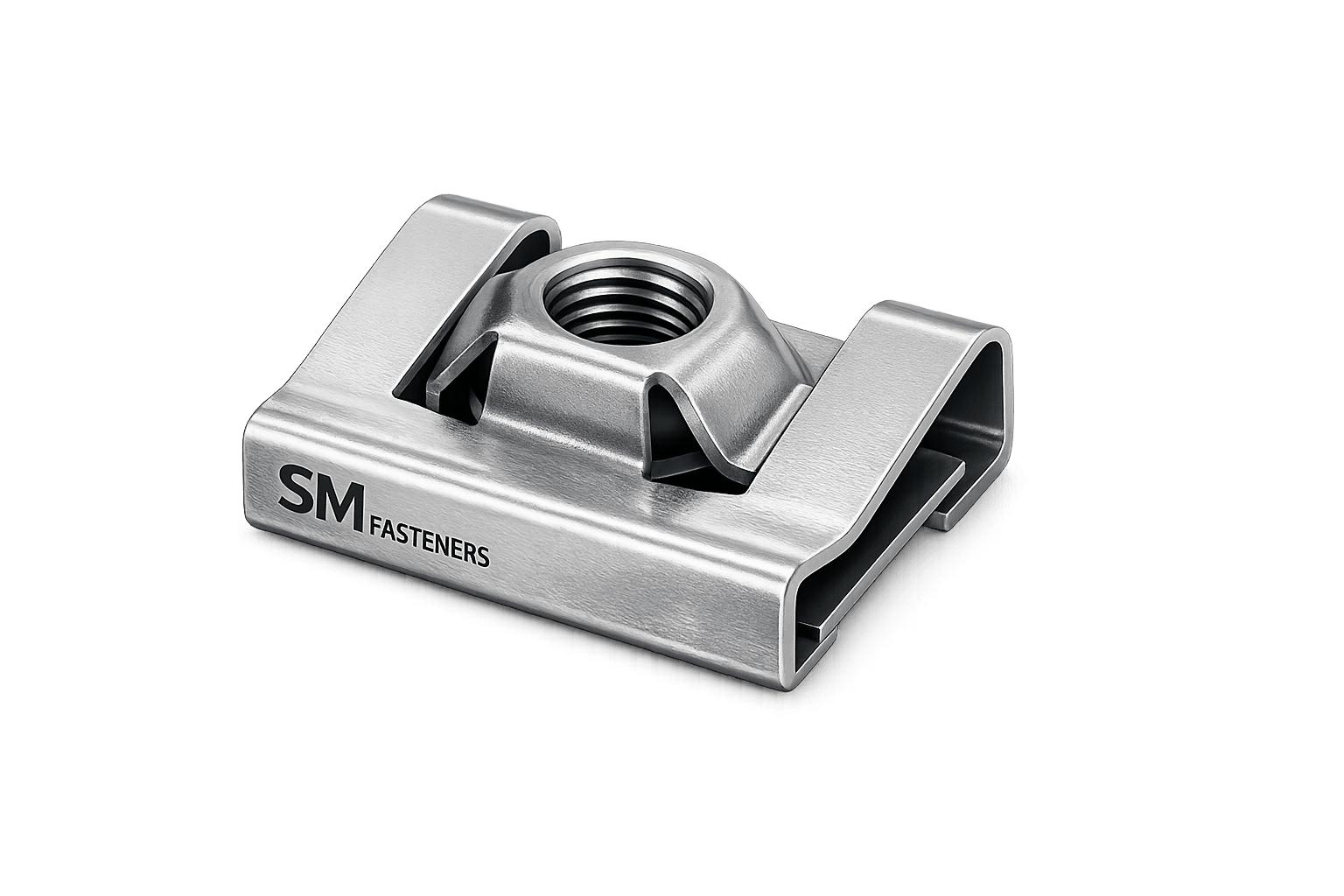

Speed Nut

1. Industry Context

Speed Nuts are specialized self-retaining sheet fastening elements developed to support high-volume industrial assembly, thin-section joining, and blind installation environments where conventional nut-and-bolt assemblies are impractical.

Within modern engineering sectors, speed nuts serve a critical function in:

• Automotive body systems
• HVAC assemblies
• Electrical enclosures
• Sheet metal fabrication
• Rail coach manufacturing
• Heavy equipment panels
• Infrastructure assemblies
• Industrial equipment guarding systems

Unlike traditional hex nuts requiring backside access and torque tools, speed nuts enable:

• Single-sided installation
• Rapid assembly cycles
• Reduced labor dependency
• Consistent preload generation
• Weight reduction in assemblies

For EPC contractors and OEM manufacturers, speed nuts significantly reduce Total Installed Cost (TIC) while maintaining mechanical reliability.

SM Fasteners manufactures precision-engineered Speed Nuts aligned with global industrial quality systems, supporting high-volume automated assembly lines and export-driven supply chains.

2. Technical Definition

A Speed Nut is a spring steel or formed metal fastener designed to:

• Clip onto sheet material or structural edges
• Provide a captive threaded interface
• Generate locking action through elastic deformation

Functional Characteristics

Characteristic	Engineering Function
Spring action	Maintains continuous thread pressure
Self-retention	Eliminates loose hardware
Floating tolerance	Compensates hole misalignment
Sheet metal compatibility	Suitable for thin substrates
Anti-vibration	Maintains preload under dynamic loads

Speed nuts typically function with:

• Machine screws
• Self-tapping screws
• Thread forming screws
• Metric or Unified fasteners

3. Load Mechanics & Force Behavior

Speed nut performance depends on elastic energy storage within the formed metal geometry.

Primary Load Modes

3.1 Clamp Load (Primary Load)

Generated when screw torque produces axial tension:$$F_p = \frac{T}{K \times D}$$

Where:

• $F_p$​ = Preload force (N)
• $T$ = Applied torque (Nm)
• $K$ = Nut factor (0.18–0.25 typical)
• $D$ = Nominal diameter (m)

3.2 Spring Retention Force

The speed nut arms act as cantilever springs:

• Provide continuous contact pressure
• Prevent loosening
• Maintain vibration resistance

3.3 Load Transfer Path

Load distribution sequence:

1. Screw head → panel surface
2. Panel → speed nut contact zone
3. Thread engagement → spring arms
4. Elastic deformation → preload stabilization

3.4 Shear Resistance

Unlike structural nuts, speed nuts are not primary shear-load fasteners.

Engineering practice:

• Shear loads carried by panel interface
• Speed nut provides clamping retention only

3.5 Vibration Performance

Locking is achieved through:

• Radial thread interference
• Spring compression
• Frictional damping

Suitable for:

• Automotive vibration spectra
• Railway oscillation environments
• Industrial rotating equipment panels

4. Joint Design Principles

Proper joint design ensures performance reliability.

4.1 Substrate Compatibility

Substrate Type	Recommended
Sheet metal	Excellent
Aluminum panels	Excellent
Composite panels	Good
Thick structural members	Not recommended

Typical thickness range:

0.5 mm – 6 mm

4.2 Edge Distance Requirements

Minimum edge distance:$$e_{min} = 1.5D$$

Prevents deformation and loss of retention.

4.3 Thread Engagement

Recommended engagement:

Thread Size	Minimum Engagement
M4	4 mm
M5	5 mm
M6	6 mm
M8	8 mm

4.4 Torque–Tension Relationship

Critical influencing parameters:

• Surface finish
• Coating friction coefficient
• Lubrication condition
• Thread class tolerance

Speed nuts rely on controlled friction, therefore over-lubrication must be avoided unless torque recalibration is applied.

4.5 Failure Mechanisms

A. Thread Stripping

Occurs when:

• Panel too thin
• Material hardness mismatch

B. Spring Fatigue

Caused by repeated removal cycles.

Recommended reuse limit:
3–5 installation cycles (typical industrial practice).

C. Over-Torque Collapse

Excess torque plastically deforms nut arms.

D. Corrosion-Induced Seizure

Common in outdoor or marine environments without coatings.

4.6 Design Advantages for EPC Projects

• No secondary access required
• Faster installation
• Reduced assembly tools
• Lower inventory complexity
• Improved maintainability

4.7 Engineering Selection Criteria

Parameter	Selection Basis
Load	Light–medium clamp loads
Environment	Indoor / coated outdoor
Assembly speed	High-volume lines
Accessibility	Blind installation
Maintenance	Quick removal

4.8 Comparison vs Conventional Nut Systems

Feature	Speed Nut	Hex Nut
Installation side	Single	Dual
Assembly speed	Very high	Moderate
Structural load	Limited	High
Automation compatibility	Excellent	Moderate
Weight	Low	Higher

4.9 Functional Role in Modern Engineering Assemblies

Speed nuts act as:

• Retained thread providers
• Panel fastening solutions
• Assembly acceleration components

Common integration:

• Equipment covers
• Cable trays
• Vehicle interiors
• Electrical cabinets
• HVAC ducts

4.10 SM Fasteners Engineering Integration

SM Fasteners manufactures speed nuts under:

• ISO 9001 controlled processes
• Traceable raw materials
• Global dimensional compliance
• Custom geometry engineering
• Advanced alloy and corrosion-resistant materials

Capabilities include:

• Stainless & alloy grades
• High-spring carbon steel
• Duplex & Nickel alloys
• PEEK engineered fasteners for electrical insulation applications

5. Product Types and Variants

Speed Nuts are engineered in multiple geometries to accommodate different assembly access conditions, panel designs, and thread engagement requirements. Selection depends on installation direction, panel thickness, vibration exposure, and service environment.

SM Fasteners manufactures standardized and custom-engineered speed nuts suitable for OEM, EPC, and export industrial applications.

5.1 U-Type speed nut (U-Clip Nut)

Most widely used industrial configuration.

Design Principle

• U-shaped spring steel clip
• Slides over sheet edge
• Captive floating threaded feature

Engineering Characteristics

Parameter	Description
Installation	Edge clip
Alignment tolerance	High
Assembly speed	Excellent
Serviceability	Reusable
Typical industries	Automotive, HVAC, Electrical Panels

Advantages:

• No pre-threaded hole required
• Accommodates panel tolerance variation
• Enables blind assembly

5.2 J-Type Speed Nut

Used where panel access is restricted to one side only.

Characteristics

• Single-leg retention design
• Compact footprint
• Reduced material usage

Applications:

• Appliance assemblies
• Light enclosures
• Interior panel fixing

5.3 Flat Speed Nut (Push-On Type)

Threadless locking design relying on radial gripping force.

Feature	Engineering Function
Serrated bore	Shaft retention
No threads	Fast push installation
High vibration resistance	Mechanical grip locking

Used for:

• Stud retention
• Shaft locking
• Electrical insulation supports

5.4 Panel Speed Nut (Extruded Thread Type)

Manufactured with formed internal threads.

Engineering benefits:

• Improved load distribution
• Higher pull-out resistance
• Increased thread engagement depth

5.5 Floating Speed Nut

Allows controlled lateral movement.

Purpose:

• Compensates hole misalignment
• Enables robotic assembly tolerance

Common in:

• Automotive body-in-white
• Aerospace interiors
• Rail coach fabrication

5.6 Self-Locking Speed Nut

Incorporates locking deformation.

Locking achieved by:

• Elliptical thread section
• Spring pressure interference

Provides resistance against:

• Vibration loosening
• Thermal cycling

5.7 Heavy-Duty Speed Nut

Designed for industrial equipment panels.

Features:

• Thick gauge material
• Increased spring stiffness
• Higher torque capacity

Used in:

• Construction equipment
• Power generation housings
• Offshore modules

5.8 PEEK Speed Nuts (Special Engineering Variant)

SM Fasteners supplies PEEK polymer speed nuts for extreme environments.

Advantages:

Property	Benefit
Electrical insulation	Electronics & rail
Chemical resistance	Process plants
Lightweight	Aerospace & instrumentation
Non-magnetic	Sensitive equipment

Temperature capability:
−70°C to +260°C

6. Dimensional Logic and Geometry

Speed nut geometry directly governs mechanical performance.

6.1 Critical Geometric Parameters

Parameter	Symbol	Function
Nominal screw diameter	D	Load capacity
Clip opening width	W	Panel compatibility
Material thickness	t	Spring force
Thread engagement height	H	Clamp reliability
Grip range	G	Panel thickness tolerance

6.2 Engineering Geometry Principles

Spring Deflection Design

Speed nuts operate within elastic limits:$$\sigma = \frac{6FL}{bt^2}$$σ=bt26FL​

Where:

• $F$F = Applied force
• $L$L = Arm length
• $b$b = Width
• $t$t = Thickness

Proper design ensures:

• Elastic recovery
• Long fatigue life
• Consistent retention force

6.3 Standard Dimensional Specification Table

(Representative SM Fasteners Engineering Data)

Thread Size	Screw Dia (mm)	Clip Width (mm)	Material Thickness (mm)	Grip Range (mm)	Hole Size (mm)
M3	3	8	0.5–0.6	0.5–2	3.2
M4	4	9	0.6–0.8	0.6–3	4.2
M5	5	11	0.7–0.9	0.8–4	5.2
M6	6	13	0.8–1.0	1–5	6.3
M8	8	17	1.0–1.2	1–6	8.4
M10	10	21	1.2–1.6	2–8	10.5

6.4 Weight Chart (SM Fasteners Reference)

Size	Weight / Piece (g)	Weight / 100 pcs (kg)
M3	0.7	0.07
M4	1.2	0.12
M5	2.0	0.20
M6	3.2	0.32
M8	6.0	0.60
M10	9.5	0.95

Weight control supports EPC logistics planning and export documentation.

7. Thread Standards & Compatibility

Speed nuts must match international thread systems used in global equipment.

7.1 Metric Threads — ISO System

Applicable Standards:

• ISO 261 — Metric thread series
• ISO 965 — Tolerances
• ISO 68-1 — Basic profile

Common tolerance class:

6H internal thread

7.2 Unified Thread System

Thread Type	Standard
UNC	ASME B1.1
UNF	ASME B1.1
UNEF	Aerospace applications

Used primarily for US-origin equipment.

7.3 British Thread Standards

Standard	Application
BSW	Legacy infrastructure
BSF	Fine-thread machinery
BS 3643	Metric adoption

7.4 Thread Tolerance Table

Thread System	Internal Class	External Class	Fit Type
Metric	6H	6g	General
UNC	2B	2A	Industrial
UNF	2B	2A	Precision
BSW	Medium	Medium	Legacy

8. Applicable International Standards

Speed nuts are governed by dimensional, material, and mechanical references rather than one single universal specification.

8.1 DIN Standards

Standard	Scope
DIN 6799	Retaining fasteners
DIN 7965	Sheet metal fasteners
DIN EN ISO 4759	Fastener tolerances

8.2 ISO Standards

Standard	Coverage
ISO 898	Mechanical properties
ISO 4042	Electroplating
ISO 10683	Zinc flake coatings
ISO 3506	Stainless steel fasteners

8.3 ASTM Standards

Standard	Application
ASTM A1008	Sheet steel
ASTM A684	Spring steel
ASTM F1941	Coating systems
ASTM B633	Zinc plating

8.4 British Standards (BS)

Standard	Coverage
BS 4183	Metric fasteners
BS EN 10204	Certification
BS 3692	Threaded fasteners

9. Interchangeability & Global Procurement Logic

EPC procurement frequently requires cross-standard compatibility.

Key considerations:

• Metric ↔ Unified conversion
• Coating thickness tolerance effects
• Thread class matching
• Panel thickness variation

SM Fasteners engineering teams provide:

• Drawing validation
• Reverse engineering
• Global equivalency mapping
• Custom tolerance design

10. Engineering Selection Matrix

Requirement	Recommended Variant
High vibration	Self-locking speed nut
Misaligned holes	Floating speed nut
Electrical isolation	PEEK speed nut
Outdoor environment	Stainless steel
High-volume assembly	U-type speed nut
Heavy equipment	Heavy-duty variant

11. Design Integration with Automated Assembly

Speed nuts are optimized for:

• Robotic screwdrivers
• Conveyor assembly lines
• Pre-installed panel systems
• Modular fabrication

Benefits:

• Reduced takt time
• Controlled torque repeatability
• Lower operator dependency

12. SM Fasteners Manufacturing Capability Alignment

SM Fasteners supports global buyers through:

• ISO 9001 process control
• UKAF-certified quality management
• MSME manufacturing scale flexibility
• Custom geometry development
• Multi-material production including nickel alloys and PEEK

Engineering deliverables include:

• 2D/3D CAD validation
• PPAP documentation (when required)
• Batch traceability
• Export-ready packaging standards

13. Material Grades and Selection Criteria

Speed Nuts function fundamentally as spring-loaded fastening devices, therefore material selection is governed by:

• Elastic recovery capability
• Fatigue resistance
• Surface hardness
• Corrosion performance
• Formability during stamping
• Long-term stress relaxation resistance

Unlike conventional nuts designed primarily for tensile strength, speed nuts require an optimized balance between strength and controlled flexibility.

SM Fasteners manufactures speed nuts across a wide industrial material spectrum compliant with global standards and EPC procurement requirements.

13.1 Primary Material Categories

Material Group	Typical Standards	Core Purpose
Spring Carbon Steel	ASTM A684 / EN 10132	High elasticity
Stainless Steel	AISI 304 / 316 / ISO 3506	Corrosion resistance
Alloy Steel	ASTM A574 / EN 10083	Higher strength
Duplex Stainless Steel	UNS S31803	Marine & offshore
Nickel Alloys	Inconel, Monel, Hastelloy	Extreme environments
Engineering Polymer (PEEK)	ASTM D6262	Electrical isolation

13.2 Carbon Spring Steel (Most Common)

Typical grades:

• SAE 1074
• SAE 1075
• C75S
• EN 10270 spring steel

Engineering Advantages

• Excellent elastic recovery
• High fatigue resistance
• Cost efficiency
• Ideal for high-volume automotive assemblies

Hardness after treatment:
HRC 40–50

13.3 Stainless Steel Speed Nuts

AISI 304 (1.4301)

• General industrial environments
• Indoor equipment
• Moderate corrosion exposure

AISI 316 / 316L (1.4401 / 1.4404)

• Marine atmosphere
• Chemical processing
• Offshore installations

13.4 Duplex & Super Duplex Stainless Steel

Used where both strength and corrosion resistance are critical.

Grade	Standard	Application
Duplex 2205	UNS S31803	Offshore
Super Duplex 2507	UNS S32750	Seawater systems

Advantages:

• High chloride resistance
• Stress corrosion resistance
• High yield strength

13.5 Nickel-Based Alloys

Available through SM Fasteners custom programs.

Alloy	Key Property
Inconel 625	High temperature strength
Hastelloy C276	Acid resistance
Monel 400	Seawater corrosion resistance
Incoloy 825	Chemical stability

Used in:

• LNG plants
• Refineries
• Chemical reactors

13.6 PEEK Speed Nuts (Advanced Engineering Solution)

PEEK provides non-metallic fastening solutions.

Property	Value
Continuous temperature	260°C
Dielectric strength	Excellent
Chemical resistance	Outstanding
Weight reduction	~70% lighter than steel

Applications:

• Electrical equipment
• Semiconductor systems
• Rail signaling
• MRI-compatible assemblies

14. Material Comparison Table

Material	UTS (MPa)	Yield Strength (MPa)	Corrosion Resistance	Temp Limit	Cost Level	Typical Application
Carbon Spring Steel	900–1200	700	Low	150°C	Low	Automotive
SS 304	515–620	205	Good	400°C	Medium	General industry
SS 316	515–620	205	Excellent	450°C	Medium-High	Marine
Duplex 2205	620–880	450	Very High	300°C	High	Offshore
Inconel 625	827	414	Exceptional	700°C	Very High	LNG
PEEK	100	90	Chemical resistant	260°C	High	Electronics

15. Corrosion Resistance vs Environment

Environment	Carbon Steel	SS304	SS316	Duplex	Nickel Alloy	PEEK
Indoor Industrial	Good	Excellent	Excellent	Excellent	Excellent	Excellent
Outdoor Atmosphere	Fair	Good	Excellent	Excellent	Excellent	Excellent
Marine Seawater	Poor	Moderate	Excellent	Superior	Superior	Excellent
Acidic Chemical	Poor	Moderate	Good	Very Good	Outstanding	Outstanding
H₂S Sour Service	Not Recommended	Limited	Good	Excellent	Excellent	Excellent

Duplex and nickel alloys can be supplied compliant with:

NACE MR0175 / ISO 15156 (sour gas environments).

16. Mechanical Properties (Grade-Wise)

Although speed nuts are not classified like bolt property classes, mechanical performance is still controlled.

Material	Hardness	Spring Modulus	Fatigue Resistance
Spring Steel	HRC 40–50	High	Excellent
Stainless Steel	HRB 85–95	Medium	Good
Duplex Steel	HRC 28–32	High	Excellent
Nickel Alloys	HRC 20–35	Medium	Excellent
PEEK	Shore D 85	Low	Excellent

17. Heat Treatment Processes

Heat treatment determines spring functionality.

17.1 Austenitizing

Steel heated to:
800–870°C

Purpose:

• Dissolve carbides
• Prepare martensitic structure

17.2 Quenching

Rapid cooling:

• Oil quench
• Polymer quench

Produces high hardness required for spring action.

17.3 Tempering

Critical step controlling elasticity.

Typical range:
350–500°C

Outcome:

• Reduced brittleness
• Improved fatigue life
• Stable spring recovery

17.4 Stress Relieving

Applied after forming.

Prevents:

• Shape distortion
• Long-term relaxation

17.5 Solution Annealing (Stainless Steel)

Temperature:
1040–1120°C

Ensures:

• Corrosion resistance restoration
• Removal of work hardening

17.6 Hydrogen Embrittlement Prevention

Mandatory for plated high-strength steels.

SM Fasteners controls risk through:

• Post-plate baking (200°C / 4 hrs)
• Controlled electroplating parameters
• Hardness monitoring

18. End-to-End Manufacturing Workflow

SM Fasteners applies ISO 9001 certified manufacturing control from raw material to shipment.

18.1 Raw Material Verification

Incoming inspection includes:

• Mill Test Certificate (EN 10204 3.1)
• Chemical composition verification
• Mechanical property validation
• PMI testing for alloy grades

18.2 Coil Preparation

Steel supplied in coils:

• Thickness tolerance verification
• Surface inspection
• Lubrication application

18.3 Progressive Die Stamping

High-speed stamping produces geometry.

Advantages:

• Dimensional repeatability
• High productivity
• Reduced material waste

Tooling accuracy:
±0.02 mm typical.

18.4 Piercing and Forming Operations

Processes include:

• Hole piercing
• Thread-forming deformation
• Clip shaping
• Spring arm creation

18.5 Thread Formation

Two methods:

Method	Benefit
Thread rolling	Higher strength
Thread forming	Faster production

Cut threads avoided where possible to preserve grain flow.

18.6 Heat Treatment

Performed in controlled furnaces:

• Continuous belt furnace
• Protective atmosphere
• Hardness validation

18.7 Surface Preparation

Pre-treatment steps:

• Degreasing
• Pickling
• Shot blasting
• Passivation

18.8 Surface Coating Application

(Details expanded below.)

18.9 Final Calibration & Sorting

• Spring force verification
• Thread gauge testing
• Vision inspection systems

18.10 Traceability System

Each batch linked to:

• Heat number
• Production lot
• Inspection records
• Operator traceability

Aligned with ISO 9001 quality management.

19. Surface Finishing and Protective Coatings

Surface engineering directly influences durability and torque characteristics.

19.1 Surface Finish Comparison Table

Coating	Standard	Corrosion Resistance	Friction Control	Typical Use
Zinc Plating	ASTM B633	72–120 hrs	Good	Indoor
Zinc Yellow	ASTM B633 Type II	Improved	Good	Automotive
Zinc-Nickel	ASTM F1941	500–1000 hrs	Excellent	OEM
Mechanical Galvanizing	ASTM B695	High	Moderate	Structural
Hot Dip Galvanized	ISO 1461	Very High	High friction	Outdoor
Dacromet / Geomet	ISO 10683	Excellent	Controlled	Automotive
Phosphate + Oil	MIL-DTL-16232	Moderate	Excellent	Assembly lines
Passivation (SS)	ASTM A967	Corrosion resistance	Neutral	Stainless
PTFE Topcoat	ISO 16047	Low friction	Excellent	Controlled torque

19.2 Coating Selection vs Environment

Environment	Recommended Coating
Indoor industrial	Zinc plated
Automotive	Zinc-nickel / Geomet
Offshore	SS316 / Duplex
Chemical plant	Nickel alloy / passivated
Electrical insulation	PEEK

19.3 Coating Thickness Control

Typical ranges:

• Electroplating: 5–12 µm
• Zinc flake: 8–15 µm
• HDG: 45–85 µm

Controlled thickness prevents thread interference.

19.5 SM Fasteners Surface Engineering Capability

SM Fasteners provides:

• RoHS compliant coatings
• REACH compliant processes
• Controlled friction coatings
• Custom corrosion protection programs
• Project-specific coating validation

All finishes supported with traceable inspection documentation.

20. Inspection & Quality Control System

Speed Nuts operate as functional spring fasteners, therefore inspection must verify not only dimensions but also elastic performance, thread integrity, and coating durability.

SM Fasteners integrates inspection activities into an ISO 9001 certified quality management system, ensuring traceability from raw material to international shipment.

20.1 Incoming Material Inspection

All production begins with controlled raw material validation.

Verification Activities

• Mill Test Certificate review (EN 10204 3.1)
• Chemical composition confirmation
• Mechanical property validation
• Coil thickness tolerance inspection
• Surface defect inspection
• Positive Material Identification (PMI) for alloy grades

Applicable Standards:

• ASTM A751 — Chemical analysis
• ISO 6892 — Tensile testing
• ASTM E415 — Spectrometry

20.2 In-Process Dimensional Inspection

Critical inspection stages include:

Process Stage	Inspection Method
Stamping	Optical measurement
Forming	Go/No-Go gauges
Thread forming	Thread plug gauges
Heat treatment	Hardness testing
Coating	Thickness measurement

Typical tolerance capability:

±0.02–0.05 mm

20.3 Mechanical Testing

Because speed nuts rely on spring action, functional testing is mandatory.

Tests Performed

• Spring retention force test
• Torque installation test
• Thread stripping resistance
• Fatigue cycle evaluation
• Pull-out resistance

20.4 Hardness Testing

Material	Method
Carbon steel	Rockwell C
Stainless steel	Rockwell B
Duplex alloys	Rockwell C
PEEK	Shore D

20.5 Coating Inspection

• Salt spray testing — ASTM B117
• Coating thickness — ISO 2178
• Adhesion testing
• Hydrogen embrittlement validation

20.6 Non-Destructive Testing (NDT)

Applied for critical project supply.

• Visual inspection
• Magnetic particle testing
• Dye penetrant testing
• Eddy current testing (special alloys)

20.7 Final Quality Release

Shipment approval includes:

• Dimensional audit
• Functional assembly validation
• Traceability confirmation
• Packaging verification

20.8 Certification & Documentation

SM Fasteners supplies:

• EN 10204 3.1 / 3.2 certificates
• Certificate of Conformance (CoC)
• Heat treatment reports
• Plating reports
• Inspection reports
• PMI reports (on request)

21. Engineering Failure Mechanisms & Prevention

21.1 Fatigue Failure

Cause:

• Excess vibration
• Repeated removal cycles

Prevention:

• Correct material hardness
• Self-locking variants
• Proper torque control

21.2 Thread Stripping

Cause:

• Thin panel mismatch
• Over-torque condition

Engineering solution:

• Increase engagement height
• Select reinforced speed nut design

21.3 Hydrogen Embrittlement

Risk exists in plated high-strength steels.

Control Measures:

• Post-plate baking
• Hardness limitation
• Controlled electroplating chemistry

21.4 Stress Corrosion Cracking

Occurs in:

• Chloride environments
• H₂S exposure

Recommended materials:

• Duplex stainless steel
• Nickel alloys
• PEEK

22. Industrial Applications

Speed nuts enable rapid assembly across multiple industrial sectors.

22.1 Construction & Structural Steel

Applications:

• Façade panels
• Cable trays
• HVAC ducts
• Access covers

Advantages:

• No backside access
• Fast installation at height

22.2 Oil & Gas Industry

Used in:

• Instrumentation panels
• Control cabinets
• Skid assemblies
• Junction boxes

Material compliance:
NACE MR0175 / ISO 15156 available.

22.3 Power Generation

Applications include:

• Turbine enclosure panels
• Electrical cabinets
• Generator housings
• Solar mounting equipment

22.4 Petrochemical & Chemical Processing

Preferred materials:

• SS316
• Duplex
• Hastelloy
• Inconel

Resistant to:

• Acids
• Chlorides
• Hydrocarbon exposure

22.5 LNG & Offshore Installations

Requirements:

• High corrosion resistance
• Vibration reliability
• Low maintenance

SM Fasteners provides offshore-ready coated and alloy speed nuts.

22.6 Automotive & Heavy Equipment

Primary usage sector.

Applications:

• Body panels
• Interior systems
• Engine bay covers
• Protective guards

Benefits:

• Assembly automation compatibility
• Reduced takt time

22.7 Railways & Infrastructure

• Coach interiors
• Electrical systems
• Signaling equipment
• HVAC installations

PEEK variants widely used for electrical insulation.

22.8 Shipbuilding

Used in:

• Accommodation panels
• Cable routing systems
• Marine electronics housings

Recommended materials:
SS316 / Duplex.

23. Export Capability & Global Supply Readiness

SM Fasteners operates as an export-oriented precision manufacturer supporting EPC contractors and OEM buyers worldwide.

23.1 Industrial Packaging Standards

Packaging Type	Purpose
VCI packaging	Corrosion protection
Polybag sealing	Moisture control
Compartment trays	Automation supply
Thread protection	Damage prevention

23.2 Export Crating

• ISPM-15 compliant wooden crates
• Vacuum packing (marine shipment)
• Palletized container loading
• Shock-resistant packing

23.3 Documentation Package

Typical export file includes:

• Commercial Invoice
• Packing List
• Certificate of Origin
• MTC EN 10204 3.1
• Inspection Report
• Coating Certificate
• Compliance Declaration

23.4 Supply Chain Advantages

SM Fasteners supports:

• Custom fastener engineering
• Project batch manufacturing
• Mixed-material supply capability
• Global logistics coordination
• Long-term EPC contracts

24. COMPLETE ENGINEERING TABLES

24.1 Mechanical Properties Table

Material	Tensile Strength (MPa)	Yield Strength (MPa)	Hardness	Elongation
Spring Steel	900–1200	700	HRC 40–50	8–10%
SS304	515	205	HRB 90	40%
SS316	515	205	HRB 85	40%
Duplex 2205	800	450	HRC 28–32	25%
Inconel 625	827	414	HRC 20–35	30%
PEEK	100	90	Shore D 85	High

24.2 Proof Load & Tensile Strength (Reference)

Size	Recommended Proof Load (kN)	Max Clamp Load (kN)
M3	1.2	1.8
M4	2.2	3.5
M5	3.5	5.5
M6	5.0	8.0
M8	9.0	14
M10	14	22

(Values dependent on screw grade and panel material.)

24.3 Tightening Torque Chart

Size	Grade 8.8 Dry (Nm)	Lubricated (Nm)
M3	1.2	0.9
M4	3	2.2
M5	6	4.5
M6	10	7.5
M8	25	18
M10	50	37

Torque values must always be validated by application testing.

24.4 Preload Calculation (Worked Example)

Formula:$$F_p = \frac{T}{K \times D}$$

Example:

• Torque $T = 10$T=10 Nm
• Nut factor $K = 0.20$K=0.20
• Diameter $D = 0.006$D=0.006 m (M6)

$$F_p = \frac{10}{0.20 \times 0.006}$$

$$F_p = 8,333 \text{ N}$$

Generated clamp load ≈ 8.3 kN

24.5 Thread Standards & Tolerances

Thread	Pitch Example	Tolerance
M6	1.0 mm	6H
M8	1.25 mm	6H
UNC 1/4″	20 TPI	2B
UNF 1/4″	28 TPI	2B
BSW	55° profile	Medium

24.6 Corrosion Resistance Comparison

Environment	Zinc	SS304	SS316	Duplex	Nickel Alloy	PEEK
Indoor	Good	Excellent	Excellent	Excellent	Excellent	Excellent
Marine	Poor	Moderate	Excellent	Superior	Superior	Excellent
Acid	Poor	Moderate	Good	Very Good	Outstanding	Outstanding
H₂S	Not suitable	Limited	Good	Excellent	Excellent	Excellent

24.7 Surface Finish Performance

Finish	Salt Spray (hrs)	Friction	Typical Sector
Zinc	72–120	Medium	Indoor
Zinc-Nickel	720+	Controlled	Automotive
Geomet	1000+	Stable	OEM
HDG	Very High	High friction	Structural
Passivated SS	Excellent	Stable	Offshore

24.8 Weight Reference Chart (SM Fasteners Alignment)

Size	Weight / Piece (g)	Weight / 100 pcs (kg)
M3	0.7	0.07
M4	1.2	0.12
M5	2.0	0.20
M6	3.2	0.32
M8	6.0	0.60
M10	9.5	0.95

25. SM FASTENERS — ENGINEERING POSITIONING

SM Fasteners demonstrates full industrial capability through:

• ISO 9001 certified manufacturing systems
• UKAF quality assurance alignment
• MSME registered production infrastructure
• Advanced metallurgy expertise
• Precision stamping and forming technology
• Multi-material manufacturing including PEEK and high-performance alloys
• Complete inspection and export documentation readiness

The company supports:
