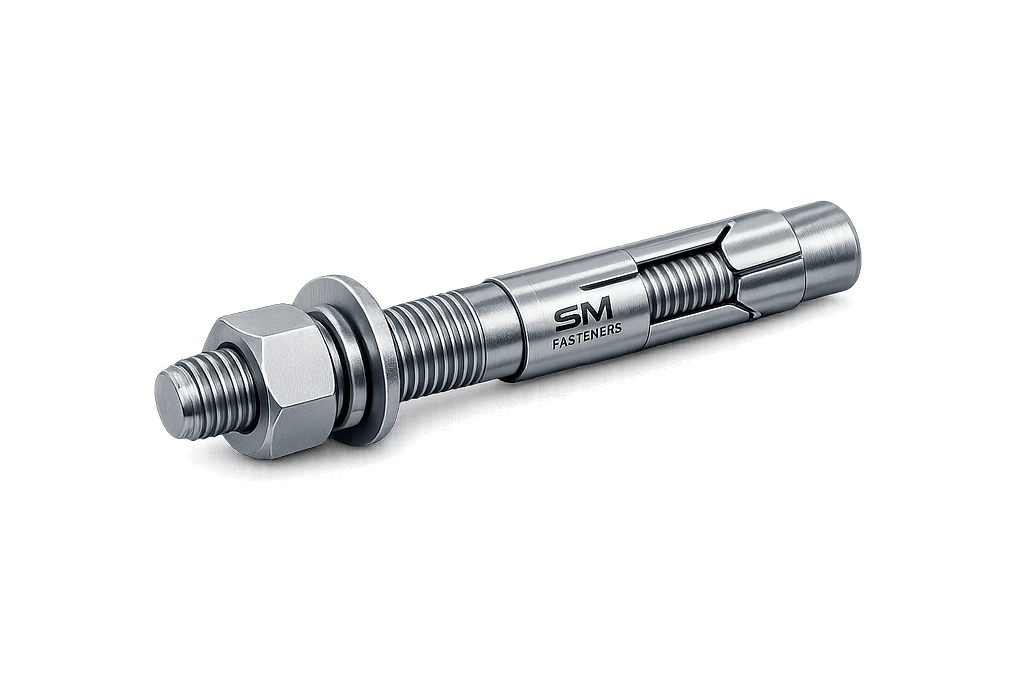

Expansion Bolt

1. Industry Context

Expansion bolts represent one of the most critical mechanical anchoring solutions used across global heavy industries where reliable load transfer into concrete, masonry, or structural substrates is required without embedded cast-in hardware.

Unlike conventional threaded fasteners that clamp two metallic components, expansion bolts function as structural anchoring devices, converting tightening torque into radial expansion forces that develop frictional and mechanical interlock within a base material.

They are extensively specified in:

• Structural steel erection
• Petrochemical plant installations
• Equipment foundation anchoring
• Offshore modules
• Power generation facilities
• LNG terminals
• Infrastructure and transportation systems

Modern EPC specifications increasingly require expansion anchors capable of:

• Predictable preload generation
• Verified pull-out capacity
• Seismic resistance
• Corrosion durability
• Traceable manufacturing compliance

Within industrial procurement environments, expansion bolts are categorized as safety-critical fastening components because anchorage failure directly compromises structural integrity or equipment stability.

1.1 Role of Expansion Bolts in Engineered Assemblies

Expansion bolts provide the mechanical interface between:

Structural Element	Anchored Component
Reinforced concrete	Structural steel columns
RCC foundation	Rotating machinery
Masonry wall	Pipe supports
Tunnel lining	Rail infrastructure systems
Offshore deck	Process equipment skids

They enable installation after concrete curing, eliminating dependency on cast-in anchor positioning tolerances.

1.2 Industrial Procurement Classification

Expansion bolts are typically specified under:

• ISO Fastening Systems
• DIN Mechanical Anchors
• ASTM Structural Fasteners
• BS Anchorage Systems

Procurement teams evaluate based on:

• Load rating certification
• Material traceability
• Installation reliability
• Corrosion resistance lifecycle
• Compliance documentation

As an ISO 9001, MSME, and UKAF-certified manufacturer, SM Fasteners integrates expansion bolts within controlled manufacturing systems aligned to global EPC project requirements.

2. Technical Definition

2.1 Engineering Definition

An Expansion Bolt is a mechanical anchoring fastener consisting of a threaded bolt or stud combined with an expandable sleeve or wedge mechanism that generates radial pressure against the base material when tightened.

Functional Principle

Tightening torque → axial movement → expansion element activation → radial compressive force → friction + mechanical interlock → load transfer.

2.2 Major Components

Component	Function
Threaded Bolt / Stud	Applies tensile force
Expansion Sleeve	Produces radial pressure
Cone / Wedge	Drives expansion
Washer	Load distribution
Nut / Head	Torque application interface

2.3 Anchor Load Transfer Mechanisms

Expansion bolts resist loads through combined mechanisms:

1. Frictional Resistance
2. Bearing Stress
3. Mechanical Interlock
4. Concrete Confinement Pressure

Unlike adhesive anchors, expansion anchors develop instant load capacity after installation.

2.4 Anchor Categories (Engineering Classification)

Category	Mechanism
Torque-Controlled Expansion Anchor	Sleeve expands via tightening torque
Wedge Anchor	Cone pulled into clip for expansion
Shield Anchor	Multi-segment expansion sleeve
Sleeve Anchor Anchor Bolt	Full-length expansion
Through Bolt Anchor	Pre-assembled installation type

3. Load Mechanics & Force Behavior

3.1 Fundamental Load Types

Expansion bolts must resist combined loading conditions:

Load Type	Description
Tensile Load	Pull-out force perpendicular to surface
Shear Load	Parallel sliding force
Combined Load	Simultaneous tension & shear
Dynamic Load	Vibrating equipment
Seismic Load	Reversal cyclic loading

3.2 Expansion Force Development

When torque is applied:$$T \rightarrow F_p \rightarrow F_r$$

Where:

• T = Applied torque
• Fₚ = Bolt preload (axial force)
• Fᵣ = Radial expansion force

Radial pressure increases friction coefficient between anchor sleeve and concrete wall.

3.3 Torque–Tension Relationship

Preload generated:$$F = \frac{T}{K \times D}$$

Where:

Symbol	Meaning
F	Preload force
T	Applied torque
K	Nut factor
D	Nominal diameter

Typical nut factor:

Condition	K Value
Dry	0.20–0.25
Zinc plated	0.18–0.22
Lubricated	0.14–0.18

3.4 Expansion Mechanics in Concrete

The expansion mechanism creates:

• Compressive hoop stress in concrete
• Contact pressure at sleeve interface
• Frictional resistance proportional to preload

Key governing factors:

• Embedment depth
• Hole diameter tolerance
• Concrete strength class
• Edge distance
• Spacing between anchors

3.5 Failure Modes (Engineering Perspective)

3.5.1 Anchor Pull-Out

Occurs when friction capacity is insufficient.

Influenced by:

• Low embedment depth
• Weak concrete
• Incorrect torque

3.5.2 Concrete Cone Failure

Formation of a conical fracture zone.

Governed by:

• Edge distance
• Anchor spacing
• Concrete tensile strength

3.5.3 Steel Failure

Bolt tensile rupture.

Occurs when:$$F_{applied} > F_{proof}$$

3.5.4 Shear Failure

Common in structural base plates.

Mitigation:

• Increased diameter
• Higher property class
• Shear lugs or plates

3.5.5 Slip Failure

Loss of preload due to vibration.

Typical causes:

• Poor installation torque
• Surface contamination
• Insufficient expansion pressure

3.5.6 Hydrogen Embrittlement Risk

Applicable to:

• High-strength anchors (>1000 MPa)
• Electroplated coatings

Control methods implemented by SM Fasteners:

• Controlled plating processes
• Post-bake treatment
• Hardness monitoring

4. Joint Design Principles

4.1 Anchor Design Philosophy

Expansion bolts transform a concrete substrate into a load-bearing threaded interface.

Design must ensure:

• Concrete strength > anchor demand
• Proper embedment
• Controlled preload
• Load redistribution safety

4.2 Critical Design Parameters

Parameter	Engineering Impact
Embedment Depth	Primary load capacity driver
Edge Distance	Prevents concrete breakout
Anchor Spacing	Avoids stress overlap
Hole Diameter	Controls expansion efficiency
Installation Torque	Determines preload

4.3 Minimum Edge Distance Guidelines

Diameter	Minimum Edge Distance
M8	50 mm
M10	60 mm
M12	75 mm
M16	90 mm
M20	120 mm
M24	150 mm

4.4 Embedment Depth Logic

Recommended embedment:$$h_{ef} = 8D \text{ to } 12D$$

Where:

• $h_{ef}$​ = effective embedment depth
• $D$ = anchor diameter

Deeper embedment improves tensile capacity but increases drilling requirement.

4.5 Concrete Interaction Behavior

Concrete resists expansion through:

• Radial compression
• Aggregate interlock
• Confinement effect

High-strength concrete (>C40) provides higher pull-out resistance but requires precise hole tolerance control.

4.6 Preload Design Objective

Expansion bolts must operate within:$$0.6F_y \leq F_p \leq 0.75F_y$$

Ensures:

• Maximum friction
• No yielding
• Long fatigue life

4.7 Fatigue Performance Considerations

Critical in:

• Turbines
• Compressors
• Rail infrastructure
• Rotating machinery

Design recommendations:

• Maintain preload > external fluctuating load
• Avoid cyclic slip
• Use hardened washers
• Apply calibrated torque installation

4.8 Seismic & Dynamic Design

Seismic applications require:

• Ductile steel grades
• Verified displacement capacity
• Controlled expansion force
• Certified testing protocols

Expansion anchors must sustain cyclic tension without loss of engagement.

4.9 Temperature Effects

Material expansion mismatch influences preload retention.

Temperature Range	Design Consideration
−50°C	Impact toughness
200°C	Strength reduction begins
400°C	Carbon steel degradation
600°C	Alloy steel preferred
Cryogenic	Austenitic stainless required

Advanced alloy and nickel-based expansion bolts supplied by SM Fasteners address high-temperature and corrosive environments.

4.10 Engineering Selection Workflow

1. Define load condition
2. Determine substrate strength
3. Select anchor type
4. Choose material grade
5. Verify embedment depth
6. Calculate preload
7. Confirm corrosion protection
8. Validate installation torque
9. Ensure certification availability

5. Expansion Bolt Product Types & Variants

Expansion bolt selection is fundamentally driven by load direction, substrate behavior, installation access, and long-term environmental exposure.

Industrial projects rarely specify a generic anchor; instead, the anchor geometry is engineered for predictable expansion performance.

5.1 Torque-Controlled Sleeve Expansion Bolts

Functional Description

A cylindrical sleeve expands along its full length when tightening force pulls a cone into the sleeve.

Characteristics

• Uniform radial pressure distribution
• Suitable for cracked concrete
• Reduced localized stress concentration
• Controlled installation torque

Typical Uses

• Pipe supports
• Cable trays
• HVAC systems
• Light-to-medium structural fixtures

5.2 Wedge Expansion Anchors

Working Principle

A conical wedge is drawn into a clip or expansion collar at the embedded end.

Engineering Advantages

• High tensile load capacity
• Immediate full load capability
• Reliable for heavy equipment anchoring

Applications

• Structural steel base plates
• Heavy machinery foundations
• Offshore skid mounting
• Petrochemical structures

5.3 Shield Anchors (Heavy-Duty Expansion Bolts)

Multi-segment expansion sleeves generate strong mechanical interlock.

Features

• High pull-out resistance
• Excellent performance in masonry
• Effective in variable substrate density

Commonly used for:

• Infrastructure projects
• Tunnel systems
• Rail installations

5.4 Through Bolt Expansion Anchors

Preassembled anchor inserted through fixture into drilled hole.

Advantages:

• Fast installation
• Reduced alignment error
• Suitable for repetitive installations

Preferred in EPC construction environments where installation speed impacts project schedules.

5.5 Stud-Type Expansion Anchors

Headless threaded studs allowing external nut installation.

Benefits:

• Adjustable fixture positioning
• High tensile performance
• Easy replacement

5.6 Internal Thread Expansion Anchors

Provide a female threaded interface inside concrete.

Used where:

• Equipment removal required
• Flush mounting needed
• Reusable anchoring desired

5.7 Heavy-Duty Structural Expansion Bolts

Designed for:

• Seismic zones
• Dynamic machinery
• Offshore environments

Manufactured using alloy steels, duplex stainless, and nickel alloys available through SM Fasteners for aggressive industrial conditions.

6. Dimensional Logic & Anchor Geometry

6.1 Engineering Geometry Principles

Expansion bolt dimensions directly influence:

• Load capacity
• Expansion pressure
• Concrete stress distribution
• Fatigue life

Primary geometric variables:

Parameter	Symbol	Function
Nominal Diameter	D	Load capacity driver
Effective Embedment	hef	Pull-out resistance
Expansion Length	Le	Radial force distribution
Thread Length	Lt	Clamp engagement
Hole Diameter	dh	Expansion efficiency

6.2 Standard Expansion Bolt Dimensional Table

Table — Metric Expansion Bolt Dimensions

| Size | Thread Pitch | Hole Dia (mm) | Embedment (mm) | Overall Length (mm) | Washer OD (mm) | Nut Size |
|—|—|—|—|—|—|
| M8 | 1.25 | 8 | 40 | 60–80 | 16 | 13 mm |
| M10 | 1.5 | 10 | 50 | 75–100 | 20 | 17 mm |
| M12 | 1.75 | 12 | 60 | 90–120 | 24 | 19 mm |
| M16 | 2.0 | 16 | 80 | 110–160 | 30 | 24 mm |
| M20 | 2.5 | 20 | 100 | 140–200 | 37 | 30 mm |
| M24 | 3.0 | 24 | 120 | 180–260 | 44 | 36 mm |
| M30 | 3.5 | 30 | 150 | 220–320 | 56 | 46 mm |

Dimensional systems manufactured at SM Fasteners follow controlled tolerance machining aligned with ISO metric standards.

6.3 Geometry Influence on Load Performance

Increasing Diameter

✔ Higher tensile capacity
✔ Greater shear resistance
✔ Increased drilling requirement

Increasing Embedment Depth

✔ Improved pull-out strength
✔ Higher safety margin
✔ Reduced concrete cone failure risk

6.4 Recommended Hole Tolerance

Diameter	Hole Tolerance
≤ M12	+0.3 mm
M16–M24	+0.4 mm
≥ M30	+0.5 mm

Oversized holes reduce expansion efficiency and preload retention.

6.5 Fixture Thickness Selection

$$L = h_{ef} + t_{fixture} + washer + nut allowance$$

Where:

• L = bolt length

7. Thread Systems & Tolerance Engineering

Expansion bolts interface with global threaded assemblies requiring interchangeability.

7.1 Thread Standard Comparison Table

Thread System	Standard	Application Region
Metric Coarse	ISO 261 / ISO 965	Global
Metric Fine	ISO 261	Precision assemblies
UNC	ASME B1.1	USA
UNF	ASME B1.1	High preload
BSW	BS 84	Legacy UK
BSF	BS 84	Fine pitch UK

7.2 Thread Tolerance Classes

Class	Fit Type	Use
6g	Standard external	Structural anchors
6H	Standard internal	Nuts
4h	Close tolerance	High precision
8g	Loose fit	Corrosive environments

Thread rolling processes used by SM Fasteners improve fatigue resistance through grain flow continuity.

8. Applicable International Standards

Expansion bolts must comply with multi-standard project specifications.

8.1 ISO Standards

Standard	Scope
ISO 898-1	Mechanical properties of carbon steel fasteners
ISO 3506	Stainless steel mechanical properties
ISO 965	Thread tolerances
ISO 4014/4017	Hex bolts geometry
ISO 9001	Quality management system

8.2 DIN Standards

DIN Standard	Description
DIN 529	Expansion anchors
DIN 125	Washers
DIN 934	Hex nuts
DIN EN 1992-4	Anchor design in concrete

8.3 ASTM Standards

ASTM Standard	Application
ASTM A307	General purpose bolts
ASTM F1554	Anchor bolts
ASTM A193	High temperature service
ASTM A320	Low temperature service
ASTM B633	Zinc plating

8.4 British Standards

BS Standard	Scope
BS 5080	Anchor systems
BS EN 14399	Structural bolting
BS 4190	Metric bolt dimensions

8.5 Property Class Systems

| Property Class | Yield (MPa) | Tensile (MPa) | Typical Use |
|—|—|—|
| 4.6 | 240 | 400 | Light anchoring |
| 5.8 | 400 | 500 | Medium duty |
| 8.8 | 640 | 800 | Structural |
| 10.9 | 900 | 1000 | Heavy machinery |
| 12.9 | 1080 | 1200 | High-strength |

9. Interchangeability & Global Procurement Considerations

9.1 EPC Procurement Requirements

Expansion bolts must provide:

• Cross-standard compatibility
• Repeatable mechanical performance
• Verified traceability
• Dimensional interchangeability

9.2 Engineering Interchangeability Rules

Parameter	Must Match
Thread form	Mandatory
Pitch	Mandatory
Strength class	Mandatory
Embedment depth	Critical
Washer diameter	Recommended

Failure to maintain equivalency can cause preload loss or structural failure.

9.3 Project Documentation Alignment

Global EPC buyers require:

• ISO certification
• MTC traceability
• Heat numbers
• Inspection records
• Dimensional verification

Manufacturing and documentation practices at SM Fasteners integrate these requirements into production workflow.

10. Engineering Selection Matrix — Expansion Bolt Type vs Application

Application	Recommended Type	Reason
Structural columns	Wedge anchor	High tensile capacity
Machinery foundations	Heavy-duty expansion	Vibration resistance
Pipe racks	Sleeve anchor	Even load distribution
Offshore modules	Alloy expansion anchor	Corrosion resistance
Chemical plants	Stainless expansion anchor	Chemical resistance
Rail infrastructure	Shield anchor	Masonry compatibility

11. Material Grades & Engineering Selection Criteria

Material selection is the single most critical engineering decision governing expansion bolt performance.
Unlike conventional bolts, expansion anchors operate under combined tensile, shear, compressive, and frictional stresses while simultaneously interacting with concrete chemistry and environmental exposure.

Engineering selection must balance:

• Mechanical strength
• Ductility
• Corrosion resistance
• Hydrogen embrittlement risk
• Temperature capability
• Lifecycle cost

11.1 Industrial Material Categories

Expansion bolts manufactured by SM Fasteners cover the full industrial alloy spectrum required for EPC and infrastructure projects.

Material Category	Typical Grades	Primary Application
Carbon Steel	C35, C45	Construction anchoring
Alloy Steel	4140, 4340	Heavy equipment
Stainless Steel	A2-70, A4-80	Marine & chemical
Duplex Stainless	2205	Offshore structures
Super Duplex	2507	Seawater exposure
Nickel Alloys	Inconel, Monel	Extreme corrosion
SMO 254	High Mo stainless	Chloride environments
PEEK Polymer	Engineering thermoplastic	Electrical isolation

11.2 Mechanical Properties by Material Grade

Table — Mechanical Properties

Material	Yield Strength (MPa)	UTS (MPa)	Hardness	Temp Limit
CS Grade 4.6	240	400	120 HB	300°C
CS Grade 8.8	640	800	22–32 HRC	425°C
Alloy 10.9	900	1040	32–39 HRC	450°C
Alloy 12.9	1080	1220	39–44 HRC	450°C
SS A2-70	450	700	210 HV	800°C
SS A4-80	600	800	250 HV	800°C
Duplex 2205	550	800	260 HV	300°C
Super Duplex 2507	650	950	300 HV	300°C
Inconel 625	480	860	—	1000°C
PEEK	—	—	—	260°C

11.3 Material Selection Matrix

Environment	Recommended Material
Indoor structural	Carbon steel 5.8 / 8.8
Heavy machinery	Alloy steel 10.9
Marine atmosphere	A4 stainless
Offshore splash zone	Duplex 2205
Seawater immersion	Super Duplex
Chemical plants	SMO 254 / Hastelloy
Cryogenic LNG	Austenitic stainless
Electrical insulation	PEEK anchors

11.4 Corrosion Resistance vs Environment

Table — Environmental Compatibility

Environment	CS	SS304	SS316	Duplex	Nickel Alloy
Atmospheric	Good	Excellent	Excellent	Excellent	Excellent
Coastal	Poor	Moderate	Good	Excellent	Excellent
Seawater	Fail	Moderate	Good	Excellent	Excellent
Acidic	Poor	Moderate	Good	Excellent	Excellent
H₂S (Sour Service)	Limited	Acceptable	Good	Excellent	Excellent
Chlorides	Poor	Moderate	Good	Excellent	Excellent

Materials supplied for oil & gas service comply with NACE MR0175 / ISO 15156 hardness restrictions when required.

11.5 Temperature Capability Engineering

Temperature Range	Preferred Material
−196°C (LNG)	SS304/316
−50°C	A320 grades
200–400°C	Alloy Steel
400–600°C	Incoloy
>800°C	Inconel alloys

12. Heat Treatment Processes

Heat treatment directly governs strength, fatigue life, and hydrogen embrittlement susceptibility.

12.1 Typical Heat Treatment Route

1. Austenitizing
2. Quenching
3. Tempering
4. Stress relieving

12.2 Heat Treatment by Property Class

Property Class	Process
5.8	Normalizing
8.8	Quench & Temper
10.9	Controlled Q&T
12.9	High precision tempering

12.3 Mechanical Impact of Heat Treatment

Treatment	Result
Quenching	High hardness
Tempering	Toughness recovery
Stress Relief	Reduced distortion
Solution Annealing	Stainless corrosion resistance

12.4 Hardness Limits (Sour Service Requirement)

Per NACE compliance:

Material	Max Hardness
Carbon Steel	22 HRC
Alloy Steel	26 HRC
Stainless Steel	Controlled cold work

These limits prevent sulfide stress cracking in H₂S environments.

13. End-to-End Manufacturing Workflow

Expansion bolts require controlled manufacturing because anchor reliability depends on dimensional accuracy and metallurgical integrity.

13.1 Raw Material Verification

Incoming inspection includes:

• Mill Test Certificates (EN 10204 3.1)
• Chemical composition verification
• Ultrasonic bar inspection
• PMI testing (XRF/OES)

All raw materials used by SM Fasteners are heat-number traceable.

13.2 Forging vs Machining

Process	Advantages
Hot Forging	Grain flow strength
Cold Forging	Dimensional precision
CNC Machining	Custom geometries

Forged expansion cones provide superior fatigue resistance.

13.3 Thread Manufacturing Methods

Thread Rolling (Preferred)

Benefits:

• Increased fatigue strength
• Work hardening
• Continuous grain structure
• Superior surface finish

Thread Cutting

Used for:

• Large diameters
• Exotic alloys
• Custom PEEK fasteners

13.4 Expansion Sleeve Manufacturing

Critical operations:

• Precision slit forming
• Controlled spring elasticity
• Hardness matching with cone

Improper sleeve hardness causes installation failure or inadequate expansion.

13.5 Assembly Process

1. Component cleaning
2. Sleeve positioning
3. Cone insertion
4. Washer & nut assembly
5. Torque validation sampling

13.6 Traceability System

Each batch includes:

• Heat number
• Manufacturing lot
• Operator record
• Inspection history

Integrated into ISO 9001 quality systems.

14. Surface Finishing & Coating Engineering

Expansion bolts operate in highly corrosive environments where coating selection significantly impacts service life.

14.1 Surface Finish Comparison

Table — Coating Performance

Coating	Thickness	Corrosion Resistance	Temp Limit	Application
Zinc Plated	5–12 µm	Moderate	120°C	Indoor
Hot Dip Galvanized	45–85 µm	High	200°C	Structural
Mechanical Galv.	40 µm	High	200°C	Hydrogen-safe
Dacromet	8–12 µm	Very High	300°C	Automotive
Geomet	10–15 µm	Very High	300°C	Offshore
PTFE Coated	Variable	Chemical resistant	260°C	Chemical plants
Black Oxide	Minimal	Low	150°C	Indoor machinery
Passivation	—	Stainless protection	High	Marine

14.2 Coating Selection by Environment

Environment	Recommended Finish
Indoor dry	Zinc plating
Outdoor structural	HDG
Marine	Duplex stainless
Chemical plant	PTFE
Offshore platform	Geomet / Duplex
H₂S service	Mechanical galvanizing

14.3 Hydrogen Embrittlement Control

Critical for property classes ≥10.9.

Preventive measures:

• Non-acid cleaning
• Mechanical plating preferred
• Post plating bake (200°C / 4 hrs)
• Hardness monitoring

14.4 Surface Friction & Torque Relationship

Coatings change nut factor:

Surface Condition	Nut Factor (K)
Dry steel	0.22
Zinc plated	0.20
Lubricated	0.16
PTFE coated	0.12

Torque charts must always reflect coating condition.

14.5 Surface Preparation Steps

1. Degreasing
2. Shot blasting
3. Pickling (controlled)
4. Coating application
5. Thickness verification
6. Adhesion testing

14.6 PEEK Expansion Fastener Surface Advantages

PEEK fasteners supplied by SM Fasteners provide:

• Zero corrosion
• Electrical insulation
• Chemical inertness
• Non-magnetic performance
• Lightweight anchoring

Used in semiconductor, electrical, and clean-room installations.

15. Inspection & Quality Control Systems

Expansion bolts are categorized as safety-critical anchoring components.
Failure risks include structural collapse, equipment instability, vibration amplification, and foundation damage. Therefore, inspection procedures must comply with internationally recognized QA/QC frameworks.

The manufacturing and inspection philosophy implemented by SM Fasteners integrates ISO 9001 quality systems with EPC procurement expectations.

15.1 Quality Assurance Framework

Quality control operates across five stages:

Stage	Inspection Activity
Incoming Material	Chemical & mechanical verification
In-Process	Dimensional & hardness control
Heat Treatment	Mechanical validation
Final Inspection	Functional verification
Pre-Shipment	Documentation audit

15.2 Dimensional Inspection

Critical parameters verified:

• Thread pitch accuracy
• Major/minor diameter
• Sleeve expansion tolerance
• Cone geometry
• Washer dimensions
• Effective embedment length

Measurement equipment:

• Digital micrometers
• Thread gauges (GO/NO-GO)
• Optical comparators
• Coordinate Measuring Machines (CMM)

15.3 Mechanical Testing

Mandatory Tests

Test	Purpose
Proof Load Test	Confirms elastic limit
Tensile Test	Determines ultimate strength
Hardness Test	Heat treatment validation
Wedge Expansion Test	Functional anchor verification
Pull-Out Test	Concrete performance validation
Shear Test	Structural resistance

15.4 Non-Destructive Testing (NDT)

Applied to critical industrial projects:

Method	Detection Capability
Magnetic Particle	Surface cracks
Ultrasonic Testing	Internal flaws
Dye Penetrant	Surface discontinuities
Eddy Current	Material defects

15.5 Positive Material Identification (PMI)

Required for alloy, duplex, and nickel materials.

Methods:

• XRF Analysis
• Optical Emission Spectroscopy

Ensures compliance with project metallurgy specifications.

15.6 Certification & Documentation

Typical export documentation:

• EN 10204 3.1 Material Test Certificate
• 3.2 Certification (Third-Party Witness)
• Heat Treatment Reports
• Dimensional Inspection Reports
• Coating Thickness Records
• Hardness Certificates
• Certificate of Conformity (CoC)

16. Engineering Applications Across Industries

Expansion bolts serve as primary anchoring elements across global industrial sectors.

16.1 Construction & Structural Steel

Applications:

• Column base plates
• Façade systems
• Steel mezzanines
• Stadium structures

Design drivers:

• High shear resistance
• Fatigue durability
• Rapid installation

16.2 Oil & Gas Industry

Upstream

• Rig structures
• Pump skids
• Wellhead equipment

Midstream

• Pipe supports
• Compressor stations

Downstream

• Refinery structures
• Reactor foundations

Requirements:

• NACE compliance
• Corrosion resistance
• Traceability

16.3 Power Generation

Used in:

• Turbine anchoring
• Generator bases
• Cable tray systems
• Nuclear auxiliary structures

High preload retention is essential for vibration resistance.

16.4 Petrochemical & Chemical Processing

Challenges:

• Acid exposure
• Thermal cycling
• Chloride corrosion

Recommended materials:

• A4 stainless
• SMO 254
• Nickel alloys

16.5 LNG & Offshore Platforms

Environmental demands:

• Seawater immersion
• Cyclic loading
• Extreme corrosion

Preferred solutions:

• Duplex / Super Duplex anchors
• PTFE-coated systems
• Nickel alloy expansion bolts

16.6 Railways & Infrastructure

Applications include:

• Rail fixing supports
• Bridge components
• Tunnel installations
• Metro systems

Shield expansion anchors are commonly specified.

16.7 Automotive & Heavy Equipment

Used for:

• Assembly lines
• Robotic base anchoring
• Dynamic machine installation

Critical requirement: vibration resistance.

16.8 Shipbuilding

Expansion bolts secure:

• Deck equipment
• Pipe brackets
• Navigation systems

Marine-grade stainless fasteners required.

16.9 PEEK Fastener Applications

PEEK expansion fasteners supplied by SM Fasteners are used where metallic anchors are unsuitable:

• Semiconductor manufacturing
• Electrical panels
• MRI environments
• Chemical dosing systems
• Clean-room installations

17. Export Capability & Global Supply Readiness

17.1 Industrial Packaging Systems

Packaging Method	Purpose
VCI Packaging	Corrosion protection
Thread Caps	Thread damage prevention
Oil Coating	Transit protection
Vacuum Packing	Marine shipment
Heat-Sealed Bags	Moisture control

17.2 Export Crating

• ISPM-15 compliant wooden crates
• Shock-resistant palletization
• Container load optimization
• Barcode traceability

17.3 Documentation Package

Each shipment may include:

• Packing List
• Commercial Invoice
• Certificate of Origin
• MTC (EN 10204 3.1 / 3.2)
• Inspection Release Note
• Third-Party Inspection (TPI) approval

17.4 Global EPC Supply Integration

SM Fasteners supports:

• Project bulk orders
• Custom anchor engineering
• Special alloys manufacturing
• Emergency shutdown supply
• Long-term framework agreements

18. Engineering Tables

18.1 Proof Load & Tensile Strength Table

Size	Grade	Proof Load (kN)	Tensile Strength (kN)
M8	8.8	14	20
M10	8.8	22	32
M12	8.8	32	46
M16	8.8	58	84
M20	8.8	90	130
M24	8.8	130	188

18.2 Mechanical Properties by Property Class

Class	Yield (MPa)	Tensile (MPa)	Elongation
5.8	400	500	12%
8.8	640	800	12%
10.9	900	1040	9%
12.9	1080	1220	8%

18.3 Tightening Torque Chart

(Zinc plated condition)

Size	Grade 8.8 Torque (Nm)	Grade 10.9 Torque (Nm)
M8	25	36
M10	49	72
M12	85	125
M16	210	310
M20	410	600
M24	710	1020

18.4 Preload Calculation (Worked Example)

Formula:$$F = \frac{T}{K \times D}$$

Example:

• Bolt: M16
• Torque = 210 Nm
• Nut Factor K = 0.20
• Diameter = 0.016 m

$$F = \frac{210}{0.20 \times 0.016}$$

$$F = 65,625\;N \approx 65.6\;kN$$

Result: Expected clamping force ≈ 65 kN.

18.5 Surface Finish Performance Comparison

Finish	Corrosion Life	Maintenance
Zinc Plated	Low–Medium	Periodic
HDG	High	Low
Dacromet	Very High	Minimal
PTFE	Chemical Resistant	Minimal
Stainless	Excellent	None

18.6 Thread Standards & Tolerances

Thread	Pitch System	Tolerance
Metric	ISO	6g/6H
UNC	Unified	2A/2B
UNF	Unified Fine	2A/2B
BSW	British	Medium
BSF	British Fine	Close

18.7 Expansion Bolt Weight Chart

(Typical engineering reference — aligned with SM Fasteners manufacturing data)

Size	Approx Weight / Piece	Weight / 100 pcs
M8×75	0.045 kg	4.5 kg
M10×100	0.075 kg	7.5 kg
M12×120	0.12 kg	12 kg
M16×150	0.24 kg	24 kg
M20×200	0.46 kg	46 kg
M24×250	0.82 kg	82 kg

19. Failure Prevention & Engineering Best Practices

Installation Controls

• Clean drilled hole thoroughly
• Use calibrated torque wrench
• Avoid over-torque expansion
• Maintain minimum edge distance
• Follow specified embedment depth

Design Controls

• Maintain preload above service load
• Prevent cyclic slip
• Select coating for lifecycle exposure
• Verify compatibility with concrete strength

20. SM Fasteners — Engineering Manufacturing Capability

Through ISO 9001-controlled manufacturing, MSME recognition, and UKAF-aligned certification systems, SM Fasteners delivers expansion bolts engineered for:

• Global EPC projects
• Heavy engineering installations
• Offshore and LNG facilities
• Chemical processing environments
• Infrastructure megaprojects

Capabilities include:

• Custom expansion anchor engineering
• Exotic alloy manufacturing
• Precision thread rolling
• Controlled heat treatment
• Full inspection traceability
• Export-ready packaging systems
