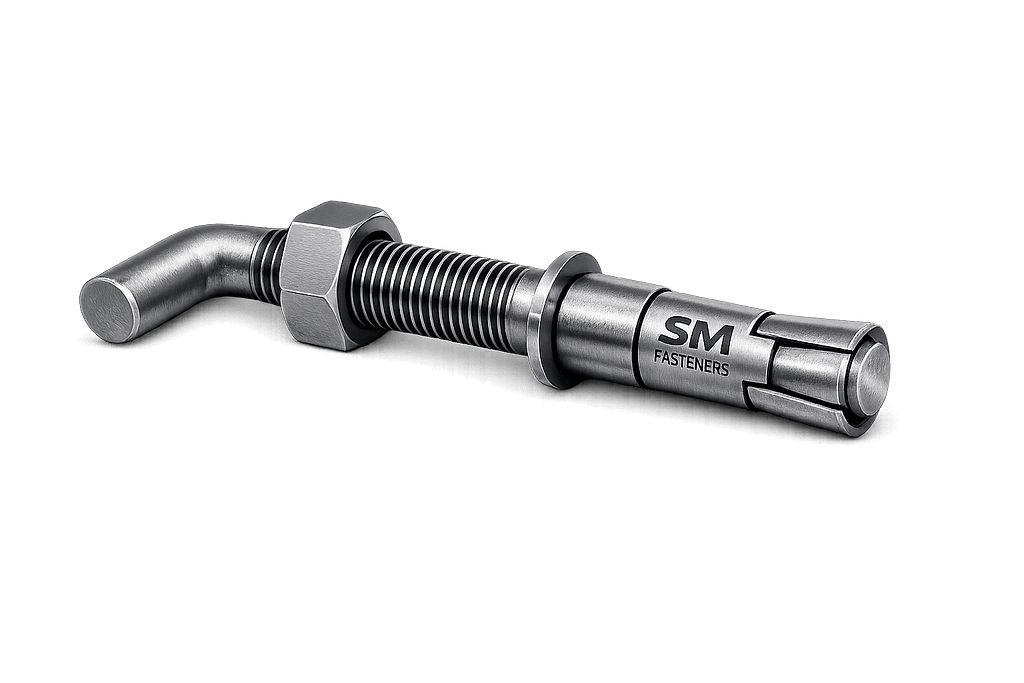

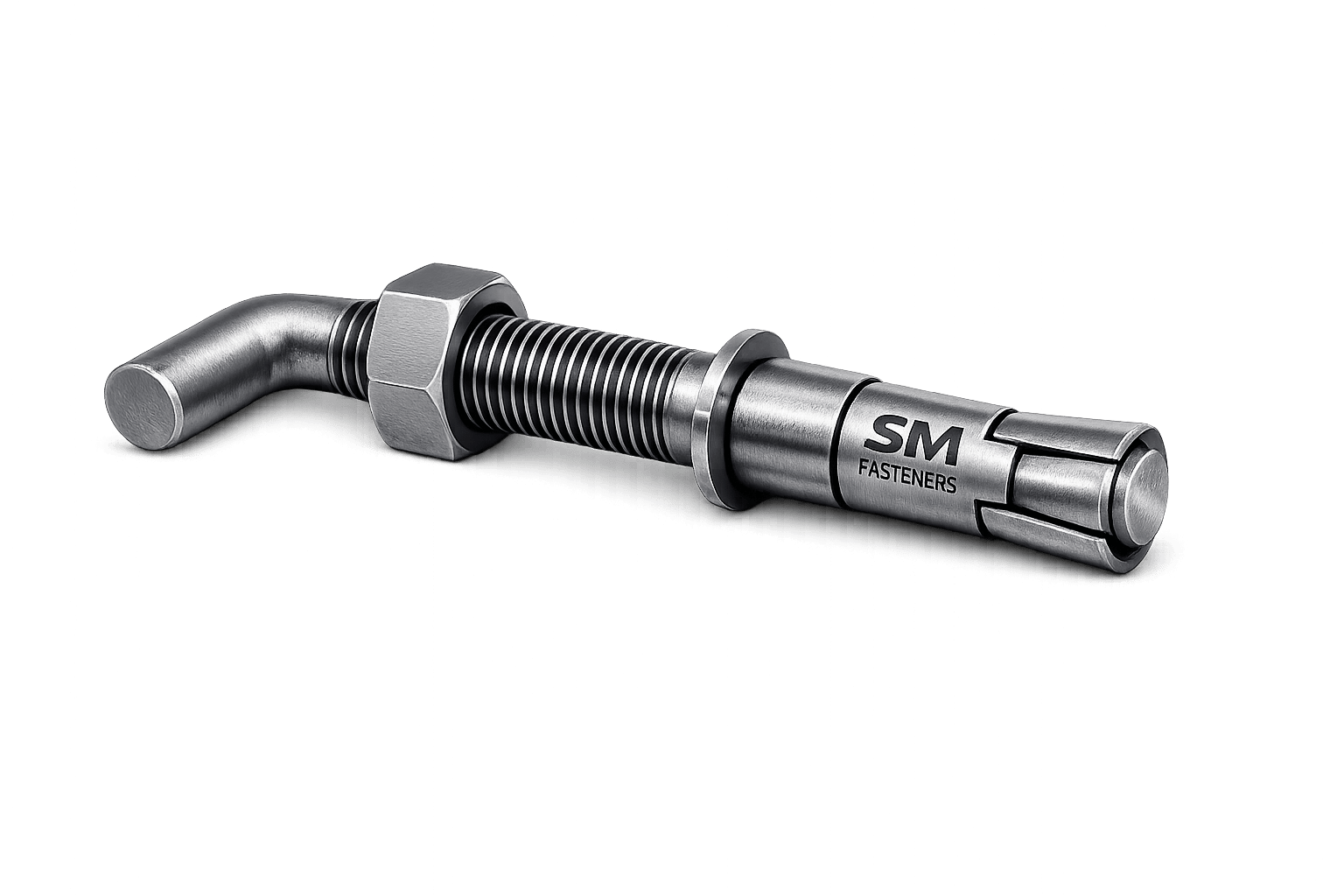

Anchor Bolt

1. Industry Context and Engineering Importance

Anchor bolts represent one of the most critical load-transfer components in civil, structural, mechanical, and heavy industrial installations. Unlike conventional threaded fasteners that join two manufactured components, anchor bolts form the primary interface between structural steel or equipment and concrete foundations.

They establish:

• Structural stability
• Equipment alignment integrity
• Seismic resistance
• Fatigue reliability
• Long-term foundation performance

Across EPC projects, anchor bolts are categorized as foundation-critical fasteners, meaning failure consequences extend beyond localized joint damage to system-level collapse risks.

Typical Engineering Responsibility Chain

Discipline	Responsibility
Civil Engineer	Concrete design & embedment
Structural Engineer	Load transfer calculations
Mechanical Engineer	Equipment anchoring
Procurement	Standard & material compliance
QA/QC	Inspection & traceability verification

Anchor bolts are therefore subject to multi-discipline engineering approval, unlike general bolting.

2. Industrial Sectors Using Anchor Bolts

Anchor bolts supplied by SM Fasteners support global infrastructure and heavy industry:

Construction & Structural Steel

• Steel column base plates
• Pre-engineered buildings
• Bridges and flyovers
• Metro infrastructure

Oil & Gas Facilities

• Compressor skids
• Pressure vessels
• Pipe racks
• Offshore topsides
• Flare stacks

Power Generation

• Turbine foundations
• Generator frames
• Boiler structures
• Wind turbine towers

Petrochemical & LNG Plants

• Reactor foundations
• Pump & motor bases
• Cryogenic installations

Heavy Equipment & OEM

• CNC machines
• Mining equipment
• Industrial presses

Marine & Shipbuilding

• Deck machinery
• Engine seating
• Dock infrastructure

Railway & Infrastructure

• Track structures
• Signal gantries
• Electrification supports

3. Technical Definition of Anchor Bolt

An Anchor Bolt is a threaded fastening element designed to:

Transmit tensile, shear, and overturning loads from structural or mechanical components into a concrete or masonry foundation through mechanical or bonded anchorage.

Unlike standard bolts, anchor bolts are partially embedded into concrete, creating a hybrid load system combining:

• Mechanical interlock
• Frictional resistance
• Bond strength
• Bearing resistance

Fundamental Components

Component	Function
Embedded Portion	Load transfer into concrete
Threaded End	Nut engagement
Hook / Head / Plate	Pull-out resistance
Projection Length	Equipment mounting allowance
Grout Zone	Load distribution

4. Functional Role in Structural Assemblies

Anchor bolts perform five simultaneous engineering functions:

1. Resist uplift forces
2. Transfer lateral shear
3. Prevent overturning
4. Maintain alignment
5. Provide vibration resistance

Failure typically originates from improper preload, insufficient embedment, or incompatible material selection.

5. Load Mechanics and Force Behaviour

Anchor bolts operate under complex multi-axis loading.

Primary Load Types

Load Type	Source	Effect
Tensile Load	Wind, uplift, seismic	Pull-out risk
Shear Load	Equipment motion	Sliding failure
Combined Load	Structural interaction	Stress concentration
Fatigue Load	Rotating equipment	Crack initiation
Dynamic Load	Impact or vibration	Loosening

5.1 Tensile Load Transfer Mechanism

Tension loads are resisted by:

• Bond between steel and concrete
• Mechanical anchorage geometry
• Concrete cone resistance

Concrete failure often governs design rather than bolt strength.

Concrete Cone Failure Concept

When loaded in tension, concrete fractures in a conical shape originating from the embedment depth.

Key parameter:$$N_{cb} \propto f’_c \times h_{ef}^{1.5}$$

Where:

• $f’_c$​ = concrete compressive strength
• $h_{ef}$​ = effective embedment depth

5.2 Shear Load Behaviour

Shear forces are transferred through:

• Bolt shank bearing
• Base plate friction
• Shear lugs or keys

Two failure modes exist:

• Steel shear failure
• Concrete edge breakout

Design codes (ACI 318 / EN 1992-4) normally require verification of both.

5.3 Combined Tension + Shear Interaction

Real industrial equipment rarely applies pure loading.

Interaction equation:$$\left(\frac{N}{N_u}\right)^a + \left(\frac{V}{V_u}\right)^b \leq 1$$

Where:

• N = Applied tension
• V = Applied shear
• Nu, Vu = capacities

6. Preload and Clamping Force Principles

Preload is essential even in embedded anchor systems.

Proper tightening ensures:

• Load sharing among bolts
• Vibration resistance
• Fatigue life extension
• Reduced joint slip

Bolt Preload Formula

$$F_p = \frac{T}{K \times d}$$

Where:

Parameter	Meaning
Fp	Preload
T	Applied torque
K	Nut factor
d	Nominal diameter

Typical nut factor values:

Condition	K Value
Dry	0.20–0.25
Zinc coated	0.18
Lubricated	0.12–0.15
PTFE coated	0.10

Engineering Insight

Only 10–15% of tightening torque generates preload.
The remainder is lost to friction.

7. Joint Design Principles

Anchor bolt joint performance depends more on system design than bolt strength alone.

Key Design Parameters

Parameter	Engineering Requirement
Embedment depth	Prevent pull-out
Edge distance	Avoid concrete cracking
Bolt spacing	Prevent cone overlap
Plate thickness	Prevent bending
Grout quality	Uniform load transfer
Sleeve allowance	Alignment adjustment

Typical Base Plate Assembly

• Structural column
• Base plate
• Leveling nuts
• Grout layer
• Concrete foundation
• Anchor bolt embedment

8. Thread Engagement Requirements

Minimum thread engagement:

Bolt Size	Minimum Engagement
M12–M20	1 × diameter
M24–M36	1.25 × diameter
M42+	1.5 × diameter

Insufficient engagement leads to thread stripping before bolt yield.

9. Friction, Relaxation and Settlement

Anchor bolts experience preload loss due to:

• Concrete creep
• Grout settlement
• Thermal expansion mismatch
• Vibration
• Coating embedment

Expected preload loss:

10–25% within initial service period

Engineering mitigation:

• Retorque after commissioning
• Hardened washers
• Controlled lubrication

10. Failure Mechanisms in Anchor Bolts

10.1 Steel Tensile Failure

Occurs when bolt capacity < applied tension.

Prevented by correct property class selection.

10.2 Concrete Cone Failure

Most common failure mode.

Mitigation:

• Increase embedment
• Larger washer plate
• Higher concrete grade

10.3 Pull-Out Failure

Occurs in hooked or adhesive anchors when bond fails.

10.4 Shear Failure

Result of lateral equipment movement.

10.5 Fatigue Failure

Common in rotating equipment foundations.

Initiation sources:

• Thread root stress
• Misalignment
• Insufficient preload

10.6 Hydrogen Embrittlement

Risk in high-strength coated fasteners (>1000 MPa).

Mitigation applied by SM Fasteners:

• Controlled plating
• Post-bake de-embrittlement
• Hardness verification

10.7 Stress Corrosion Cracking (SCC)

Occurs in:

• Chloride environments
• H₂S service
• Marine exposure

Material selection must follow:

• NACE MR0175 / ISO 15156

11. Anchor Bolt vs Conventional Bolt — Engineering Comparison

Parameter	Anchor Bolt	Conventional Bolt
Installation	Embedded in concrete	Through-hole assembly
Load Transfer	Concrete + steel	Steel-to-steel
Preload Criticality	Moderate–High	High
Design Codes	ACI / EN concrete codes	ISO bolting standards
Replacement	Difficult	Easy
Failure Impact	Structural	Localized

12. Engineering Selection Philosophy

Selection of anchor bolts requires simultaneous evaluation of:

• Structural loads
• Environmental exposure
• Installation method
• Inspection accessibility
• Long-term maintenance requirements

SM Fasteners supports EPC clients with:

• Custom embedment geometries
• Heavy foundation anchoring systems
• High-alloy & corrosion-resistant materials
• PEEK fastener solutions for electrical isolation applications

13. Role of Certified Manufacturing

Anchor bolts must maintain full traceability due to structural criticality.

SM Fasteners manufacturing system integrates:

• ISO 9001 controlled procedures
• Heat traceability
• Raw material verification (MTC)
• Batch-controlled production
• Inspection documentation suitable for third-party audits

14. Anchor Bolt Classification Philosophy

Anchor bolts are engineered according to load transfer method, installation condition, and foundation interaction rather than head configuration alone.

Engineering classification used in global EPC projects:

Classification Basis	Categories
Installation Stage	Cast-in / Post-Installed
Anchorage Mechanism	Mechanical / Bonded
Geometry	Hooked / Headed / Plate / Straight
Load Type	Tension / Shear / Dynamic
Service Environment	Structural / Offshore / Chemical

SM Fasteners manufactures anchor bolts aligned with international project specifications and customized embedment designs.

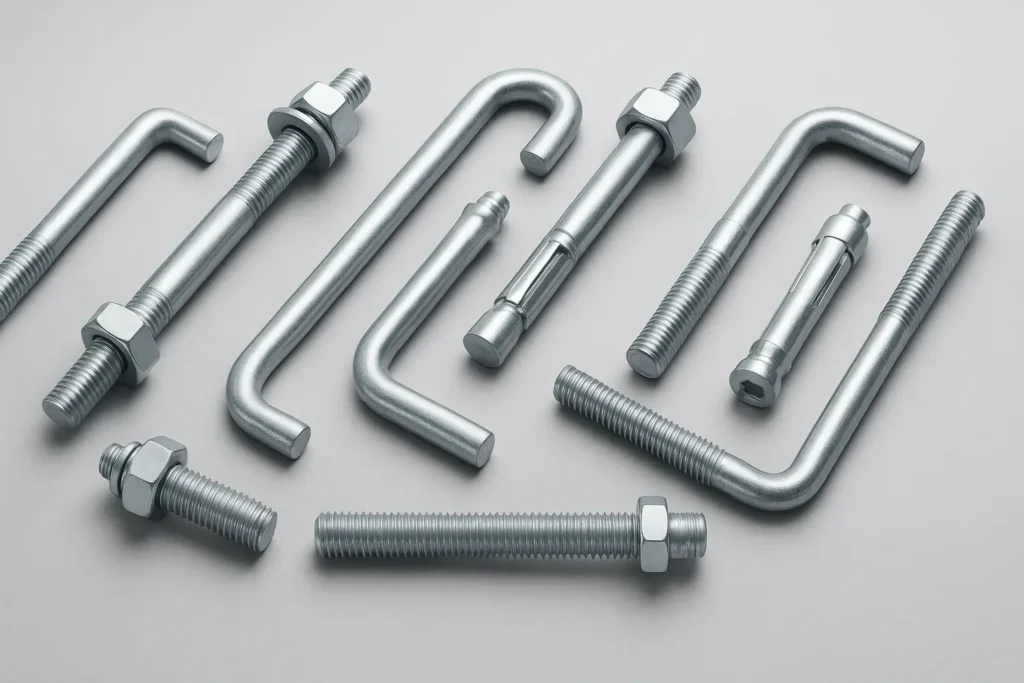

15. Major Anchor Bolt Types

15.1 L-Type Anchor Bolt

Geometry: 90° bent end.

Load Resistance:

• Mechanical anchorage via hook
• Suitable for moderate tensile loads

Applications

• Structural columns
• Light machinery
• Building steelwork

Parameter	Engineering Characteristic
Manufacturing	Hot bending or forging
Installation	Cast-in-place
Advantages	Simple, economical
Limitation	Lower pull-out resistance

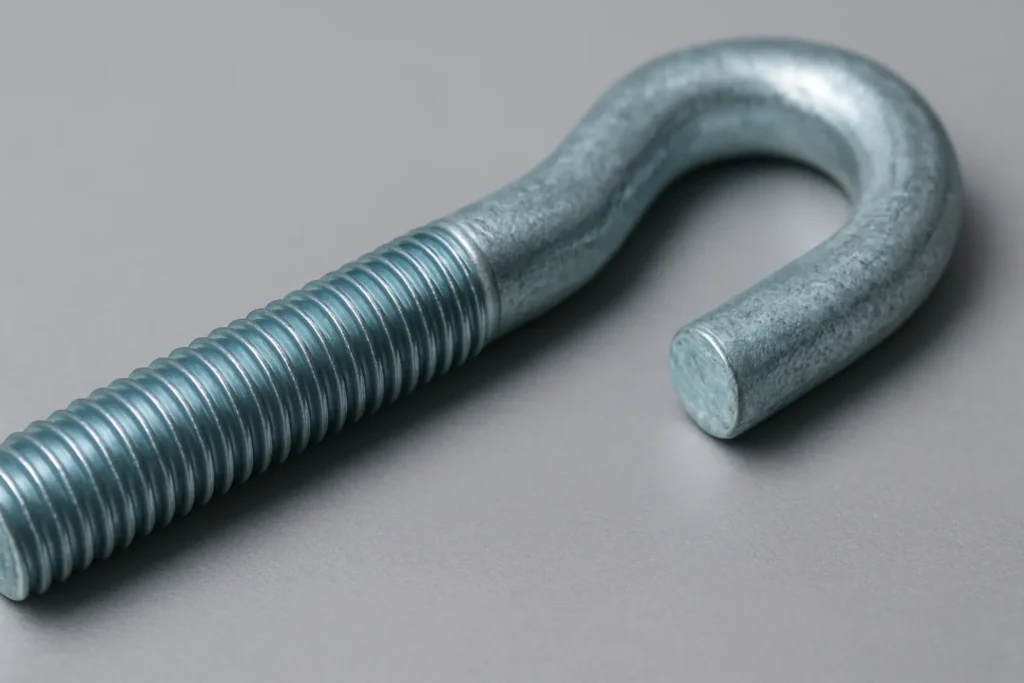

15.2 J-Type Anchor Bolt

Geometry: J-shaped hook.

Provides improved resistance compared to L-type due to longer bearing path.

Used extensively in:

• Steel structures
• Pipe supports
• Secondary foundations

15.3 Straight Anchor Bolt with Nut & Washer

Straight threaded rod anchored by:

• Double nuts
• Anchor plates
• Chemical bonding

Engineering Advantage

• Adjustable positioning
• High precision alignment

Preferred in EPC and turbine installations.

15.4 Headed anchor bolt

Forged hex or square head at embedded end.

Provides superior mechanical anchorage.

Feature	Benefit
Forged head	High tensile capacity
No bending stress	Improved fatigue life
Uniform load distribution	Reduced concrete cracking

Common in:

• Power plants
• Offshore modules
• Heavy equipment bases

15.5 Plate Anchor Bolt

Includes welded or forged anchor plate.

Used where extreme uplift loads exist.

Typical sectors:

• Wind towers
• Petrochemical reactors
• Large compressors

15.6 Sleeve Anchor Systems

Include sleeve allowing adjustment.

Engineering Purpose:

• Alignment tolerance
• Thermal expansion allowance

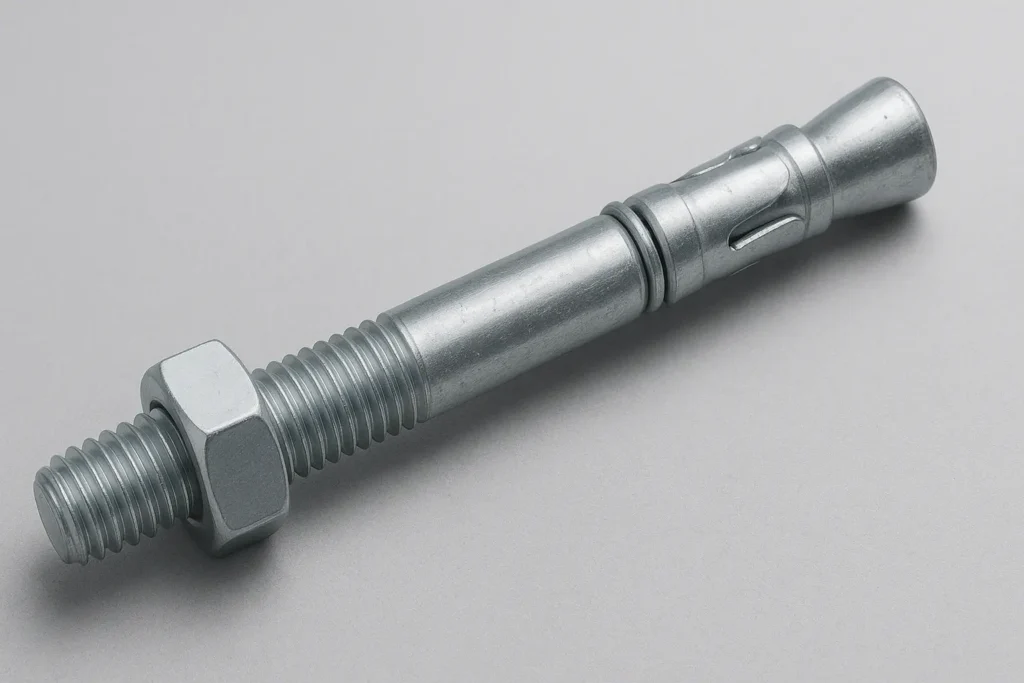

15.7 Post-Installed Mechanical Anchors

Installed after concrete curing.

Types include:

• Wedge anchors
• Expansion anchors
• Undercut anchors

Load transfer through expansion pressure.

15.8 Chemical / Adhesive Anchor Bolts

Bonded using epoxy or polyester resin.

Advantages:

• High tensile capacity
• Suitable for retrofit applications
• Minimal edge stress

15.9 Double-End Stud Anchor Bolt

Threaded both ends.

Used in:

• Rotating machinery
• Pump installations
• Skid assemblies

15.10 Insulated Anchor Bolts (PEEK Integration)

SM Fasteners supplies PEEK-based anchoring systems where:

• Electrical isolation required
• Cryogenic service exists
• Corrosion risk is severe

Applications:

• LNG terminals
• Offshore electrical modules
• Hydrogen facilities

16. Dimensional Logic & Geometry Engineering

Anchor bolt geometry directly influences performance.

Critical Dimensional Parameters

Parameter	Symbol	Engineering Function
Nominal Diameter	d	Load capacity
Thread Pitch	P	Load distribution
Embedment Depth	hef	Pull-out resistance
Projection Length	Lp	Installation clearance
Bend Radius	R	Stress reduction
Edge Distance	C	Concrete integrity

Embedment Depth Guideline

Bolt Diameter	Typical Embedment
M12	120–150 mm
M16	160–220 mm
M20	200–300 mm
M24	250–400 mm
M30	350–500 mm
M36	450–700 mm
M42	600–900 mm

Actual design governed by ACI 318 or EN 1992-4 calculations.

17. Standard Dimensional Specification Table

Metric Anchor Bolt Dimensions (Typical Reference)

Size	Pitch (mm)	Across Flats (mm)	Nut Height (mm)	Washer OD (mm)	Recommended Hole
M12	1.75	19	10	24	14
M16	2.0	24	13	30	18
M20	2.5	30	16	37	22
M24	3.0	36	19	44	26
M30	3.5	46	24	56	33
M36	4.0	55	29	66	39
M42	4.5	65	34	78	45
M48	5.0	75	38	92	52

Dimensions aligned with ISO nut & washer standards.

18. Thread Standards & Tolerances

Anchor bolts must comply with global thread systems.

Thread System Comparison

Standard	Region	Angle	Typical Use
ISO Metric	Global	60°	EPC projects
UNC	USA	60°	Structural steel
UNF	USA	60°	High preload
BSW	UK	55°	Legacy systems
BSF	UK	55°	Precision assemblies

Metric Thread Tolerances

Class	Application
6g	Standard bolt tolerance
6H	Nut tolerance
4h	Precision fit

SM Fasteners maintains CNC-controlled threading compliant with ISO 965 tolerances.

19. Applicable International Standards

Anchor bolts fall under multiple governing standards.

ISO Standards

Standard	Scope
ISO 898-1	Mechanical properties
ISO 4014 / 4017	Hex bolts reference
ISO 965	Thread tolerances
ISO 3506	Stainless fasteners
ISO 10684	Hot-dip galvanizing

ASTM Standards (Widely Used in Oil & Gas)

Standard	Application
ASTM F1554	Structural anchor bolts
ASTM A307	General purpose
ASTM A193	High temperature
ASTM A320	Low temperature
ASTM A194	Heavy hex nuts
ASTM F436	Hardened washers

DIN Standards

Standard	Description
DIN 529	Foundation bolts
DIN 976	Threaded rods
DIN 931/933	Dimensional references

British Standards

Standard	Scope
BS 4190	ISO metric bolts
BS EN 14399	Structural bolting
BS 3643	Thread forms

Concrete Design Codes Referenced

Code	Region
ACI 318	USA
EN 1992-4	Europe
IS 456	India
IS 800	Structural steel

20. Mechanical Property Classes (Overview)

Anchor bolt strength defined by property class or ASTM grade.

Property Class	Yield (MPa)	UTS (MPa)	Typical Use
4.6	240	400	Light structures
5.8	400	500	General foundation
8.8	640	800	Industrial equipment
10.9	900	1000	Heavy machinery
12.9	1080	1200	Special applications

Selection must consider hydrogen embrittlement risk.

21. Interchangeability Considerations

Critical for global procurement.

Parameter	Risk
Thread mismatch	Assembly failure
Property class mismatch	Structural failure
Coating thickness	Fit interference
Nut compatibility	Loss of preload

SM Fasteners provides cross-standard manufacturing ensuring ISO–ASTM interchangeability where permitted by specification.

22. Dimensional Engineering Considerations for EPC Projects

Anchor bolt geometry must account for:

• Template installation accuracy
• Tolerance stack-up
• Grout thickness variation
• Thermal expansion
• Future equipment replacement

Typical EPC tolerance:

Parameter	Typical Tolerance
Bolt projection	±3 mm
Bolt spacing	±2 mm
Verticality	1:100

23. Anchor Bolt Weight Chart (SM Fasteners Reference)

Approximate theoretical weights (carbon steel).

Size	Weight / Piece (kg)	Weight / 100 pcs (kg)
M12 × 300	0.27	27
M16 × 400	0.63	63
M20 × 500	1.23	123
M24 × 600	2.12	212
M30 × 750	4.18	418
M36 × 900	7.50	750
M42 × 1000	11.5	1150
M48 × 1200	18.2	1820

Weight charts used for:

• Logistics planning
• Structural dead-load calculations
• Export packaging design

24. Engineering Selection Summary

Proper anchor bolt selection requires simultaneous verification of:

• Geometry suitability
• Applicable international standards
• Thread compatibility
• Mechanical class
• Installation methodology

SM Fasteners supports EPC and OEM buyers through:

• Custom drawing-based manufacturing
• Heavy-diameter anchor systems
• Precision thread rolling capability
• Certified dimensional control under ISO 9001 quality systems

25. Material Engineering Philosophy for Anchor Bolts

Material selection is the single most critical engineering decision governing anchor bolt reliability, service life, and structural safety.

Unlike conventional bolting, anchor bolts often operate under:

• Long-term static tension
• Cyclic vibration loads
• Embedded concrete alkalinity
• Moisture ingress
• Chemical exposure
• Temperature gradients
• Limited inspection accessibility

Therefore, materials must be selected based on mechanical performance + environmental compatibility + code compliance.

SM Fasteners manufactures anchor bolts across a full industrial material spectrum, enabling EPC procurement alignment worldwide.

26. Industrial Material Grades Used for Anchor Bolts

26.1 Carbon Steel Anchor Bolts

Most widely used material category.

Typical Grades:

• ASTM F1554 Grade 36 / 55 / 105
• ASTM A307
• IS 2062
• EN S355

Advantages

• High structural strength
• Economic production
• Excellent machinability

Limitations

• Requires corrosion protection

Applications:

• Buildings
• Infrastructure
• General equipment foundations

26.2 Alloy Steel Anchor Bolts

Used where higher strength or temperature resistance is required.

Common Grades:

• ASTM A193 B7
• ASTM A193 B16
• EN 1.7225 (42CrMo4)

Applications:

• Petrochemical plants
• Pressure vessels
• High-load equipment
• Power generation turbines

26.3 Stainless Steel Anchor Bolts

Selected primarily for corrosion resistance.

Typical Grades:

Grade	UNS	Key Property
SS304	S30400	General corrosion resistance
SS316	S31600	Chloride resistance
SS316L	S31603	Weldability
SS321	S32100	Elevated temperature
SS904L	N08904	Acid resistance

26.4 Duplex & Super Duplex Stainless Steels

High-strength corrosion-resistant materials.

Grade	Yield Strength	Key Benefit
Duplex 2205	~450 MPa	Chloride SCC resistance
Super Duplex 2507	~550 MPa	Offshore durability

Applications:

• Offshore platforms
• Desalination plants
• Marine structures

26.5 Nickel Alloy Anchor Bolts

Used in extreme environments.

Material	Service Condition
Inconel 625	High temperature & corrosion
Incoloy 825	Acid environments
Monel 400	Seawater service
Hastelloy C276	Chemical processing
Nickel 200	Caustic applications

26.6 SMO 254 Anchor Bolts

Super austenitic stainless steel.

Suitable for:

• Seawater immersion
• Chloride-rich environments
• Offshore LNG facilities

26.7 PEEK Anchor Fasteners (Advanced Applications)

SM Fasteners supplies PEEK (Polyether Ether Ketone) fastener solutions where metallic anchoring is unsuitable.

Engineering Advantages:

• Electrical insulation
• Zero galvanic corrosion
• Cryogenic compatibility
• Chemical inertness
• Lightweight

Applications:

• Hydrogen plants
• Semiconductor facilities
• LNG instrumentation
• Electrical isolation mounts

27. Material Comparison Table

Material	UTS (MPa)	Yield (MPa)	Corrosion Resistance	Temperature Limit	Cost Level	Typical Industry
Carbon Steel	400–800	240–640	Low	300°C	Low	Construction
Alloy Steel B7	860	720	Moderate	450°C	Medium	Oil & Gas
SS304	515	205	Good	425°C	Medium	Infrastructure
SS316	515	205	Very Good	450°C	Medium	Marine
Duplex 2205	800	450	Excellent	300°C	High	Offshore
Super Duplex	950	550	Superior	300°C	High	Offshore/LNG
Inconel 625	930	480	Exceptional	1000°C	Very High	Aerospace/LNG
SMO 254	650	300	Extreme	350°C	High	Seawater
PEEK	95	90	Absolute	260°C	Specialized	Electrical

28. Corrosion Resistance vs Environment

Environment	Recommended Material
Indoor Dry	Carbon Steel
Outdoor Atmosphere	HDG Carbon Steel
Coastal	SS316 / Duplex
Seawater Immersion	Super Duplex / SMO 254
Acid Processing	Hastelloy
H₂S Sour Service	Controlled hardness B7 / Duplex
LNG Cryogenic	A320 L7 / Stainless
Electrical Isolation	PEEK

29. Mechanical Properties by Property Class

Property Class	Yield Strength (MPa)	Tensile Strength (MPa)	Hardness Range
4.6	240	400	120–160 HB
5.8	400	500	150–190 HB
8.8	640	800	22–34 HRC
10.9	900	1000	32–39 HRC
12.9	1080	1200	39–44 HRC

NACE MR0175 Limitation:
Hardness typically ≤ 22 HRC for sour service.

30. Heat Treatment Processes

Heat treatment defines final mechanical performance.

30.1 Normalizing

• Grain refinement
• Improved toughness
• Used for structural grades

30.2 Quenching & Tempering (Q&T)

Process:

1. Austenitizing
2. Rapid quenching
3. Controlled tempering

Produces:

• High strength
• Improved fatigue resistance

Applied to:

• Grade 8.8
• B7
• 10.9 anchor bolts

30.3 Solution Annealing (Stainless Steels)

Removes carbide precipitation.

Benefits:

• Restores corrosion resistance
• Prevents intergranular attack

30.4 Stress Relieving

Essential for:

• Bent anchor bolts
• Welded plate anchors

Prevents residual stress cracking.

30.5 Hydrogen De-Embrittlement Baking

Mandatory after electroplating for high-strength fasteners.

Typical parameters:

• 200°C
• 4–24 hours

Implemented under SM Fasteners controlled procedures.

31. End-to-End Manufacturing Workflow

SM Fasteners integrates full manufacturing traceability aligned with ISO 9001 systems.

Step 1 — Raw Material Verification

Incoming inspection includes:

• Mill Test Certificate (EN 10204 3.1)
• Chemical analysis verification
• Ultrasonic bar inspection
• Heat number traceability

Step 2 — Material Cutting

• CNC band sawing
• Length tolerance control
• Heat identification retention

Step 3 — Forging / Forming

Methods:

Method	Application
Hot forging	Headed anchors
Cold forming	Smaller diameters
Hot bending	L & J anchors
Plate welding	Heavy anchors

Forging improves grain flow and fatigue resistance.

Step 4 — Machining Operations

Performed using CNC equipment:

• Thread preparation
• End facing
• Chamfering
• Tolerance finishing

Step 5 — Thread Manufacturing

Thread Rolling (Preferred)

• Compressive grain structure
• Increased fatigue strength

Thread Cutting

• Used for large diameters or special alloys

Step 6 — Heat Treatment

Performed under calibrated furnaces with:

• Temperature recording
• Batch traceability
• Hardness verification

Step 7 — Surface Preparation

• Shot blasting
• Pickling
• Passivation (stainless)

Step 8 — Coating Application

(covered below)

Step 9 — Final Inspection

• Dimensional verification
• Mechanical testing
• Marking confirmation

Step 10 — Identification & Traceability

Each batch marked with:

• Heat number
• Grade
• Manufacturer identification (SM Fasteners)

32. Surface Engineering & Corrosion Protection

Anchor bolts require engineered surface systems.

Surface Finish Comparison Table

Coating	Thickness	Corrosion Resistance	Temperature Limit	Typical Use
Black Oxide	Minimal	Low	300°C	Indoor
Zinc Electroplating	5–12 µm	Moderate	120°C	Machinery
Hot Dip Galvanizing	70–100 µm	High	200°C	Structural
Mechanical Galvanizing	Uniform	High	200°C	Structural
PTFE / Xylan	Low friction	High	260°C	Chemical
Dacromet / Geomet	Excellent	300°C	Automotive
Epoxy Coating	Barrier protection	Excellent	120°C	Marine
Passivation	Chemical resistance	High	400°C	Stainless
Nickel Plating	Decorative + protection	Moderate	400°C	Special

33. Coating Selection Engineering Logic

Selection depends on:

• Environment
• Preload requirement
• Friction coefficient
• Hydrogen embrittlement risk
• Inspection requirements

Example:

Environment	Recommended Coating
Structural outdoor	Hot Dip Galvanized
Offshore	Duplex Stainless
Chemical	PTFE coated
High preload	Mechanical galvanizing
Sour service	Controlled coating + hardness

34. Friction Coefficient vs Coating

Coating	Friction Coefficient
Dry Steel	0.20–0.25
Zinc Plated	0.18
HDG	0.22
PTFE	0.10
Xylan	0.08–0.12

Critical for torque calculation accuracy.

35. Manufacturing Quality Integration at SM Fasteners

SM Fasteners manufacturing systems ensure:

• ISO 9001 process control
• UKAF-recognized quality compliance
• Batch traceability
• EPC project documentation readiness
• Capability for large-diameter custom anchor bolts
• Exotic alloy manufacturing
• PEEK engineered solutions

36. Inspection & Quality Control Philosophy

Anchor bolts are classified as structural safety components.
Failure may result in:

• Structural instability
• Equipment misalignment
• Fatigue cracking
• Catastrophic operational shutdown

Therefore, inspection extends beyond dimensional verification into material integrity, mechanical performance, and traceability validation.

SM Fasteners integrates inspection into every production stage under ISO 9001 quality management systems.

37. Incoming Material Inspection

Before manufacturing begins, raw material verification includes:

Inspection	Method	Purpose
Chemical Composition	Spectrometer	Alloy confirmation
MTC Review	EN 10204 3.1	Heat traceability
Ultrasonic Testing	UT	Internal defect detection
Visual Inspection	ASTM A484	Surface integrity
Diameter Verification	Vernier/Micrometer	Dimensional conformity

Heat numbers remain traceable throughout production.

38. In-Process Manufacturing Inspection

Performed at controlled checkpoints.

Stage	Inspection Activity
Forging	Grain flow verification
Bending	Radius conformity
Thread Rolling	Pitch & flank angle check
Heat Treatment	Furnace calibration review
Coating	Thickness measurement

Statistical process control ensures repeatability.

39. Dimensional Inspection Requirements

Critical parameters:

• Overall length
• Projection length
• Thread length
• Straightness
• Perpendicularity
• Bend angle
• Plate alignment (plate anchors)

Typical tolerances:

Parameter	Tolerance
Length	±2 mm
Thread Pitch	ISO 965
Straightness	≤ 1/1000 length
Bend Angle	±2°

40. Mechanical Testing

Conducted per ISO 898-1 and ASTM standards.

Mandatory Tests

Test	Standard	Purpose
Tensile Test	ISO 6892	Strength verification
Proof Load Test	ISO 898	Elastic limit validation
Hardness Test	Rockwell/Brinell	Heat treatment control
Impact Test	ASTM A370	Low-temperature service
Bend Test	Project specific	Ductility

41. Non-Destructive Testing (NDT)

Required for critical projects.

Method	Detection Capability
Magnetic Particle (MPI)	Surface cracks
Ultrasonic Testing	Internal flaws
Dye Penetrant (DPT)	Micro-cracks
Radiography	Weld inspection
Eddy Current	Surface discontinuities

42. Positive Material Identification (PMI)

PMI testing ensures alloy integrity.

Used extensively in:

• Offshore projects
• Refineries
• LNG plants
• Nuclear facilities

SM Fasteners performs handheld XRF PMI verification upon request.

43. Documentation & Certification

Typical EPC documentation package:

Document	Standard
Mill Test Certificate	EN 10204 3.1 / 3.2
Heat Treatment Report	ISO compliant
Mechanical Test Report	ASTM / ISO
Dimensional Inspection Report	Project format
Coating Certificate	ISO 10684
Certificate of Conformity	Manufacturer declaration

All documentation traceable to manufacturing batch.

44. Failure Prevention Through Quality Control

Major failure causes addressed:

Failure Mode	Prevention Method
Concrete breakout	Embedment verification
Thread stripping	Gauge inspection
Hydrogen embrittlement	Post-bake process
Fatigue cracking	Rolled threads
SCC	Correct alloy selection

45. Industrial Application Engineering

45.1 Construction & Structural Steel

Anchor bolts secure:

• Steel columns
• Bridge bearings
• Transmission towers
• Metro structures

Primary load: static tension + seismic forces

45.2 Oil & Gas Industry

Applications:

• Compressor foundations
• Pipe racks
• Storage tanks
• Offshore modules

Requirements:

• NACE MR0175 compliance
• Corrosion-resistant alloys
• High preload reliability

45.3 Power Generation

Used in:

• Gas turbines
• Steam turbines
• Wind turbine towers
• Boiler structures

Critical requirement: vibration fatigue resistance.

45.4 Petrochemical & Chemical Plants

Exposure to:

• Acids
• Chlorides
• Solvents

Typical materials:

• SS316
• Duplex
• Hastelloy
• PTFE-coated anchors

45.5 LNG & Cryogenic Installations

Materials:

• ASTM A320 L7
• Stainless steel
• Nickel alloys

Must maintain toughness below −160°C.

45.6 Automotive & Heavy Equipment

Applications:

• Robotic assembly lines
• Press foundations
• CNC machinery anchoring

Requires alignment precision.

45.7 Railways & Infrastructure

• Electrification poles
• Signaling gantries
• Track structures

Designed for cyclic dynamic loading.

45.8 Shipbuilding & Marine Engineering

Exposure:

• Salt spray
• Immersion
• Wave loading

Preferred materials:

• Duplex
• Super Duplex
• SMO 254

45.9 PEEK Anchor Applications

Used where metal anchors are unsuitable:

• Electrical isolation mounts
• Hydrogen production systems
• Semiconductor plants
• High-purity chemical systems

46. Export Packaging & Logistics Engineering

SM Fasteners supplies globally with engineered packaging systems.

Industrial Packaging

Method	Purpose
VCI Wrapping	Corrosion prevention
Thread Protectors	Damage prevention
Oil Coating	Transit protection
Heat Number Tagging	Traceability

Export Crating

• ISPM-15 fumigated wooden crates
• Steel pallets for heavy anchors
• Moisture barrier packing
• Container load optimization

47. Global Supply & Procurement Capability

SM Fasteners supports EPC buyers through:

• Custom drawing manufacturing
• Large-diameter anchor production
• Exotic alloy capability
• Small batch + bulk production
• International logistics coordination
• Project-based documentation control

Certifications integrated:

• ISO 9001 Quality Management
• MSME recognized manufacturing
• UKAF accredited systems

48. COMPLETE ENGINEERING TABLES

48.1 Proof Load & Tensile Strength Table

Size	Grade 4.6 Proof Load (kN)	Grade 8.8 Proof Load (kN)	Grade 10.9 Proof Load (kN)
M12	22	45	64
M16	39	82	116
M20	61	128	181
M24	88	186	262
M30	142	300	424
M36	207	437	618
M42	287	606	857

48.2 Tightening Torque Chart

(Approximate values)

Size	Grade	Dry Torque (Nm)	Lubricated Torque (Nm)
M12	8.8	85	65
M16	8.8	210	160
M20	8.8	410	310
M24	8.8	710	530
M30	8.8	1400	1050
M36	8.8	2450	1850

48.3 Preload Calculation — Worked Engineering Example

Given

• Bolt: M24 Grade 8.8
• Torque Applied: 700 Nm
• Nut Factor (lubricated): 0.14
• Diameter: 24 mm

$$F_p = \frac{T}{K \times d}$$

$$F_p = \frac{700}{0.14 \times 0.024}$$

$$F_p = 208,333\,N \approx 208\,kN$$

Result:
Approximate preload = 208 kN

48.4 Thread Standards & Tolerance Table

Thread	Pitch Example	Tolerance	Usage
Metric M24	3.0 mm	6g/6H	Global EPC
UNC 1″	8 TPI	2A/2B	USA structures
UNF 1″	12 TPI	2A/2B	High preload
BSW	8 TPI	Medium fit	Legacy UK
BSF	Fine	Precision	Maintenance

48.5 Surface Finish Performance Comparison

Coating	Corrosion Resistance	Friction Stability	Maintenance Need
Black	Low	Stable	High
Zinc	Medium	Moderate	Medium
HDG	High	Variable	Low
PTFE	Very High	Excellent	Low
Duplex Stainless	Extreme	Excellent	Minimal

48.6 Anchor Bolt Weight Reference Chart

(Aligned with SM Fasteners production data)

Size & Length	Weight/Pc (kg)	Weight/100 pcs (kg)
M16 × 400	0.63	63
M20 × 500	1.23	123
M24 × 600	2.12	212
M30 × 750	4.18	418
M36 × 900	7.50	750
M42 × 1000	11.5	1150
M48 × 1200	18.2	1820

49. Engineering Selection Checklist

Before procurement approval:

✔ Verify applicable design code
✔ Confirm material compatibility
✔ Check embedment design
✔ Validate mechanical properties
✔ Confirm coating system
✔ Review certification package
✔ Confirm installation torque specification

50. SM FASTENERS — ENGINEERED MANUFACTURING ADVANTAGE

SM Fasteners demonstrates full industrial capability through:

• ISO 9001 certified manufacturing systems
• UKAF-accredited quality compliance
• MSME recognized production infrastructure
• Advanced alloy manufacturing expertise
• PEEK fastener engineering capability
• Complete inspection & traceability control
• EPC-ready documentation and export logistics

The integrated engineering, manufacturing, inspection, and documentation framework ensures anchor bolts supplied by SM Fasteners meet the stringent reliability expectations of global infrastructure, energy, and heavy industry projects.
