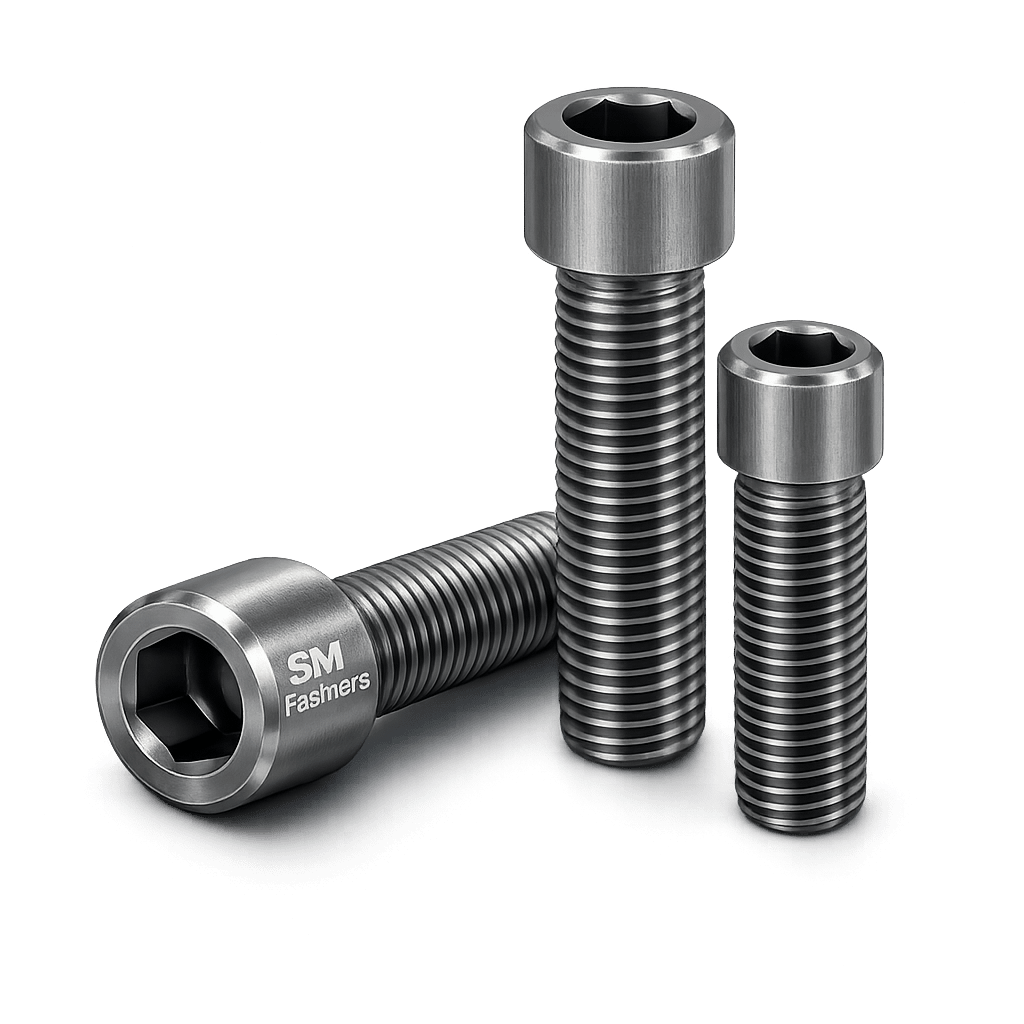

Socket Head Cap Screws

1. Industry Context

Socket Head Cap Screws (SHCS) are precision-engineered high-strength threaded fasteners primarily used in space-constrained, high-load mechanical assemblies where conventional hex bolts cannot deliver required performance or accessibility.

Across global heavy engineering sectors, SHCS are considered critical load-transfer components, not simple fastening elements.

Primary Industrial Drivers

Industry Sector	Engineering Requirement	SHCS Advantage
Oil & Gas	High preload reliability	High tensile property classes
Power Generation	Vibration resistance	Deep internal drive torque capacity
Structural Steel	Compact installation	High clamp force in limited space
Petrochemical	Corrosion resistance	Advanced alloys & coatings
OEM Machinery	Precision alignment	Controlled preload accuracy
Rail & Infrastructure	Fatigue resistance	Uniform load distribution

SM Fasteners manufactures socket head cap screws aligned with global EPC project specifications, ensuring compatibility with international inspection and procurement systems.

2. Technical Definition

A Socket Head Cap Screw is a:

Cylindrical-headed, internally driven threaded fastener designed to achieve high preload values using an internal hexagonal drive interface.

Fundamental Geometry

Key Design Elements

• Cylindrical head with precision height tolerance
• Internal hex (Allen) drive
• Close tolerance shank
• Rolled or precision cut threads
• High-strength material structure

Unlike hex bolts, torque is applied axially through the socket, allowing:

• Higher torque transmission
• Reduced head diameter
• Improved tool clearance
• Controlled tightening accuracy

3. Functional Role in Mechanical Assemblies

Socket head cap screws function primarily as clamping force generators.

They do not carry load through shear alone; instead, properly designed joints rely on:

Frictional resistance generated by preload.

Functional Roles

• Structural clamping
• Machine assembly retention
• Precision component positioning
• Dynamic load stabilization
• Pressure equipment fastening

4. Load Mechanics & Force Behavior

4.1 Fundamental Bolt Load Model

When tightened:

1. Screw elongates elastically
2. Joint components compress
3. Preload develops
4. Friction resists separation

External Load → Joint Interface → Friction → Bolt Preload Resistance

4.2 Preload Concept

Preload is the initial tensile force introduced during tightening.

$$F = \frac{T}{K \times D}$$

Where:

Symbol	Meaning
F	Preload force
T	Applied torque
K	Nut factor
D	Nominal diameter

Typical Nut Factor:

Condition	K Value
Dry steel	0.20–0.24
Lubricated	0.15–0.18
MoS₂ coated	0.10–0.13

4.3 Torque–Tension Relationship

Approximately:

• 90% torque lost to friction
• 10% converted into useful preload

Therefore, surface condition control is mandatory.

SM Fasteners integrates coating control and dimensional consistency under ISO 9001 quality systems to stabilize torque behavior.

4.4 Force Distribution in Joint Design

External loads distribute between bolt and joint stiffness.

$$C = \frac{K_b}{K_b + K_j}$$

Where:

Term	Definition
Kb	Bolt stiffness
Kj	Joint stiffness
C	Load sharing factor

Rigid joints reduce bolt fatigue.

5. Joint Design Principles

5.1 Proper Thread Engagement

Minimum engagement:

Material	Engagement Length
Steel	1 × Diameter
Aluminum	1.5 × Diameter
Cast Iron	1.2 × Diameter

5.2 Clamp Length Considerations

Longer grip length provides:

• Better fatigue resistance
• Reduced stress concentration
• Stable preload retention

5.3 Head Seating Requirements

Socket head cap screws require:

• Flat bearing surface
• Perpendicular seating
• Surface roughness control

Improper seating leads to bending stress and premature failure.

6. Mechanical Behavior Under Service Loads

Tensile Loading

Primary operating mode.

Shear Loading

Should be minimized via friction joint design.

Fatigue Loading

Common in rotating machinery and rail equipment.

Thermal Expansion

Differential expansion affects preload retention.

7. Failure Mechanisms

Fatigue Failure

Occurs below yield strength due to cyclic stress.

Mitigation

• Correct preload
• Rolled threads
• Smooth fillet radii

Shear Failure

Occurs when joint slips.

Prevented by:

• Adequate clamp force
• Friction coefficient control

Hydrogen Embrittlement

High-strength screws (>1000 MPa) are vulnerable.

SM Fasteners applies controlled coating processes compliant with industrial baking requirements.

Stress Corrosion Cracking (SCC)

Common environments:

• Chlorides
• H₂S
• Caustic service

Material selection must follow NACE MR0175 / ISO 15156.

8. Why Socket Head Cap Screws Are Preferred in Engineering Systems

Design Parameter	SHCS Benefit
High Strength	Property class 12.9 capability
Space Constraint	Reduced head diameter
Automation	Compatible with robotic assembly
Precision	Tight tolerance manufacturing
Maintenance	Repeatable torque accuracy

9. Product Types and Variants

Socket Head Cap Screws are engineered into multiple configurations to satisfy installation access, load transfer requirements, and environmental constraints across global industrial systems.

Unlike commodity fasteners, selection depends heavily on joint architecture, not merely diameter or strength class.

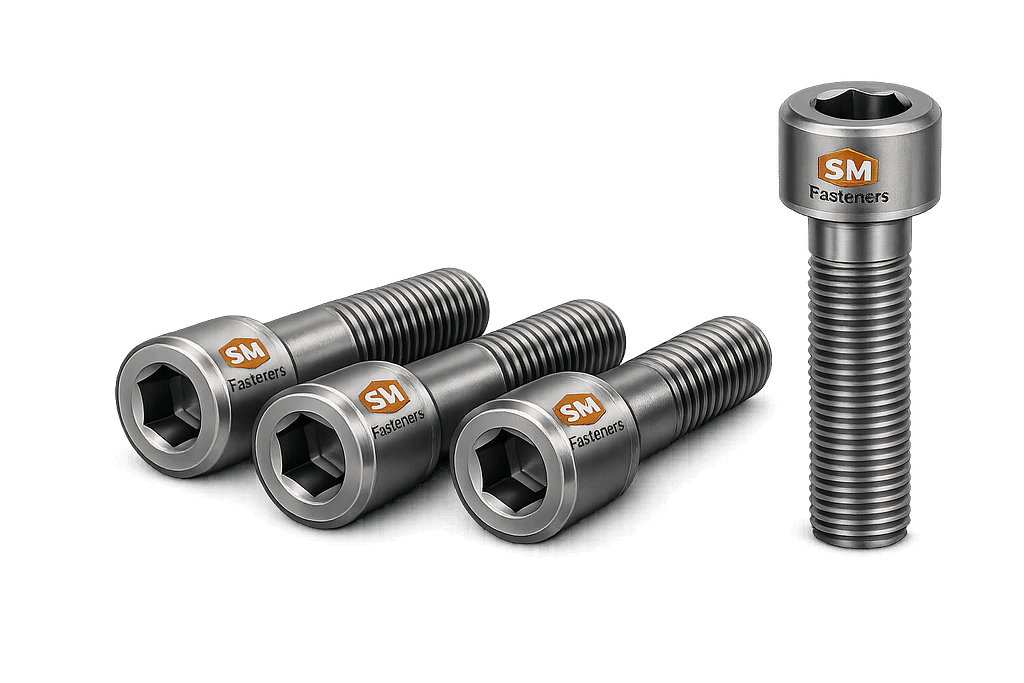

9.1 Standard Socket Head Cap Screw (SHCS)

Primary Standard: ISO 4762 / DIN 912

Characteristics

• Cylindrical head
• Internal hex drive
• Full or partial thread
• High preload capability

Applications

• Machine assemblies
• Structural modules
• Precision fixtures
• Hydraulic equipment

9.2 Low Head Socket Cap Screws

Design Intent
Used where vertical clearance is restricted.

Engineering Consideration

• Reduced head strength
• Lower torque capacity
• Requires torque adjustment

Typical usage:

• Electronics housings
• Robotics
• Aerospace subassemblies

9.3 Button Head Socket Screws

Geometry

• Rounded head profile
• Larger bearing surface
• Lower head height

Advantages

• Aesthetic assemblies
• Reduced snag risk
• Non-structural clamping

Not recommended for high tensile structural loading.

9.4 Flat Head (Countersunk) Socket Screws

Function
Provides flush surface installation.

Requires:

• Countersunk seat machining
• Accurate alignment

Used in:

• Sliding surfaces
• Rail equipment
• Automotive panels

9.5 Shoulder Socket Screws

Engineering Role
Acts as both:

• Fastener
• Precision locating shaft

Applications:

• Pivot joints
• Bearing mounts
• Tooling fixtures

9.6 Vented Socket Head Cap Screws

Designed for:

• Vacuum systems
• Semiconductor equipment
• Aerospace assemblies

Feature:

• Axial vent hole preventing trapped gases.

9.7 Peek socket head cap screws

SM Fasteners supports high-performance polymer fasteners for extreme environments.

Material: PEEK (Polyether Ether Ketone)

Advantages:

• Non-magnetic
• Chemical resistant
• Electrically insulating
• Lightweight
• Radiation tolerant

Used in:

• Semiconductor fabrication
• Medical equipment
• Chemical processing systems

10. Dimensional Logic & Engineering Geometry

Socket head cap screw geometry is standardized to achieve:

• Optimal torque transmission
• Controlled stress flow
• Minimum stress concentration

10.1 Key Dimensional Parameters

Symbol	Description
d	Nominal thread diameter
P	Thread pitch
k	Head height
dk	Head diameter
s	Hex socket size
t	Socket depth
L	Overall length
b	Thread length

11. Metric Socket Head Cap Screw Dimensions (ISO 4762)

Dimensional Specification Table

Size	Pitch (mm)	Head Dia dk (mm)	Head Height k (mm)	Socket Size s (mm)	Thread Length b (mm)
M3	0.5	5.5	3	2.5	12
M4	0.7	7	4	3	14
M5	0.8	8.5	5	4	16
M6	1.0	10	6	5	18
M8	1.25	13	8	6	22
M10	1.5	16	10	8	26
M12	1.75	18	12	10	30
M16	2.0	24	16	14	38
M20	2.5	30	20	17	46
M24	3.0	36	24	19	54

Dimensions aligned with ISO/DIN tolerance systems maintained by SM Fasteners production control.

12. Applicable International Standards

Socket head cap screws operate under strict dimensional and mechanical standardization.

Primary Standards

Standard	Description
ISO 4762	Metric SHCS
DIN 912	German equivalent
ISO 898-1	Mechanical properties
ASTM A574	Alloy steel SHCS
BS 2470	British socket screws
ASME B18.3	Inch series SHCS
ISO 261	Metric thread pitches
ISO 965	Thread tolerances

SM Fasteners supplies interchangeable products across standards for multinational EPC projects.

13. Property Class System

Metric fasteners use property class designation.

Property Class	Tensile Strength (MPa)	Yield Strength (MPa)
8.8	800	640
10.9	1000	900
12.9	1200	1080

Higher classes provide higher preload capacity but require stricter coating control.

14. Thread Standards & Tolerances

Thread System Comparison

System	Standard	Typical Use
Metric Coarse	ISO 261	Global machinery
Metric Fine	ISO 965	High precision joints
UNC	ASME B1.1	USA structural
UNF	ASME B1.1	High fatigue resistance
BSW	BS 84	Legacy UK equipment
BSF	BS 84	Fine British threads

Thread Tolerance Classes

Thread	External Class	Internal Class
Metric	6g	6H
Precision	4g6g	4H
UNC	2A	2B
UNF	3A	3B

SM Fasteners controls thread rolling dies to maintain tolerance repeatability for automated assembly systems.

15. Geometry Influence on Performance

Head Height vs Torque Capacity

Higher head height allows:

• Larger socket depth
• Higher torque transfer
• Reduced rounding risk

Fillet Radius Importance

Critical for fatigue life.

Rolled fillets reduce stress concentration by up to 30% compared to sharp transitions.

Socket Engagement

Minimum engagement rule:

$$Tool Engagement ≥ 80\% Socket Depth$$

Prevents stripping during installation.

16. Interchangeability Considerations

Engineering procurement teams must verify:

• Head diameter compatibility
• Socket size equivalency
• Thread pitch matching
• Strength class equivalence
• Coating thickness effect

SM Fasteners supports multi-standard compliance enabling cross-regional sourcing flexibility.

17. Engineering Selection Logic

Requirement	Recommended Variant
High strength joint	Standard SHCS
Limited head clearance	Low head
Flush mounting	Countersunk
Pivot motion	Shoulder screw
Electrical isolation	PEEK SHCS
Vacuum application	Vented screw

18. Material Grades & Engineering Selection Criteria

Material selection for Socket Head Cap Screws is a critical engineering decision influencing:

• Mechanical strength
• Corrosion resistance
• Temperature capability
• Hydrogen embrittlement susceptibility
• Service life reliability

SM Fasteners manufactures socket head cap screws using certified raw materials supported by EN 10204 3.1 material test certificates, ensuring traceability from steel mill to finished fastener.

18.1 Industrial Material Categories

Material Category	Typical Grades	Key Advantages	Typical Industries
Carbon Steel	C45, EN8	Economical strength	Construction, machinery
Alloy Steel	4140, 4340, SCM435	High tensile performance	Oil & Gas, heavy equipment
Stainless Steel	A2-70, A4-80	Corrosion resistance	Marine, chemical
Duplex Stainless	2205	Chloride resistance	Offshore platforms
Super Duplex	2507	Extreme corrosion resistance	Subsea systems
Nickel Alloys	Inconel, Monel	High temperature stability	LNG, petrochemical
Hastelloy	C276	Acid resistance	Chemical processing
SMO 254	6Mo stainless	Seawater durability	Desalination plants
PEEK	Polymer grade	Electrical insulation	Semiconductor, medical

SM Fasteners supports full material traceability under ISO 9001 quality management systems.

19. Mechanical Properties by Material Grade

Mechanical Property Comparison Table

Grade	UTS (MPa)	Yield Strength (MPa)	Hardness (HRC/HB)	Temp Limit °C	Typical Use
8.8	800	640	22–32 HRC	300	Structural
10.9	1000	900	32–39 HRC	350	Machinery
12.9	1200	1080	39–44 HRC	400	High load assemblies
A2-70	700	450	≤95 HRB	400	General corrosion
A4-80	800	600	≤100 HRB	450	Marine
Duplex 2205	800+	550	28–32 HRC	300	Offshore
Inconel 718	1240	1030	36–45 HRC	700	Gas turbines
Monel 400	550	240	150 HB	480	Seawater
PEEK	—	—	Polymer	260	Electrical isolation

20. Material Selection Based on Environment

Corrosion Resistance vs Environment

Environment	Recommended Material	Reason
Atmospheric	Carbon steel + coating	Cost efficiency
Marine	A4-80 / Duplex	Chloride resistance
Offshore splash zone	Super Duplex	Pitting resistance
Sour gas (H₂S)	Controlled hardness alloy steel	NACE compliance
Acid processing	Hastelloy C276	Chemical stability
LNG cryogenic	Austenitic stainless	Toughness retention
High temperature	Inconel/Incoloy	Creep resistance
Electrical isolation	PEEK	Non-conductive

SM Fasteners provides material selection guidance aligned with NACE MR0175 / ISO 15156 where required.

21. Heat Treatment Processes

Heat treatment defines final mechanical performance.

21.1 Heat Treatment Objectives

• Increase tensile strength
• Improve fatigue resistance
• Refine grain structure
• Control hardness limits

21.2 Typical Heat Treatment Cycle (Alloy Steel SHCS)

1. Austenitizing — 850–900°C
2. Quenching — Oil or polymer medium
3. Tempering — 400–650°C
4. Stress Relief

Heat Treatment vs Property Outcome

Process	Effect
Quenching	Hardness increase
Tempering	Toughness improvement
Normalizing	Grain refinement
Solution Annealing	Corrosion resistance recovery

Hardness Control (Critical for Oil & Gas)

Requirement	Limit
NACE Sour Service	≤34 HRC
Hydrogen Embrittlement Risk Zone	>39 HRC
Typical Class 12.9	39–44 HRC

SM Fasteners maintains calibrated furnace systems and batch traceability records.

22. End-to-End Manufacturing Workflow

Socket head cap screws require precision manufacturing control unlike general-purpose bolts.

22.1 Raw Material Verification

Incoming inspection includes:

• Mill Test Certificate verification
• Chemical composition testing
• Ultrasonic inspection (when required)
• PMI verification for alloy grades

22.2 Forging / Head Forming

Cold heading preferred for strength-critical fasteners.

Benefits

• Grain flow continuity
• Improved fatigue resistance
• Reduced material waste

Machining used for:

• Exotic alloys
• Large diameters
• Custom designs

22.3 Socket Formation

High precision broaching or forging produces:

• Accurate hex geometry
• High torque transmission capability
• Reduced tool wear during installation

22.4 Thread Production

Thread Rolling (Preferred)

Advantages:

• Compressive surface stress
• Higher fatigue life
• Improved dimensional accuracy

Thread Cutting

Used only when rolling is not feasible.

Thread Quality Control

Parameter	Inspection Method
Pitch accuracy	Thread gauges
Lead error	Optical measurement
Surface integrity	Visual + magnification
Concentricity	Runout inspection

22.5 Heat Treatment Execution

• Controlled atmosphere furnaces
• Digital temperature logging
• Batch identification traceability

22.6 Straightening & Stress Relief

Prevents distortion after quenching.

22.7 Surface Preparation

Before coating:

• Degreasing
• Shot blasting
• Pickling (stainless grades)
• Ultrasonic cleaning

23. Surface Engineering & Coatings

Surface finish directly influences:

• Corrosion resistance
• Torque coefficient
• Galling prevention
• Installation repeatability

Surface Finish Comparison Table

Coating	Corrosion Resistance	Friction Stability	Temp Limit	Typical Use
Black Oxide	Low	Good	300°C	Machinery
Zinc Plating	Moderate	Variable	120°C	Construction
HDG	High	High friction	200°C	Structural
Mechanical Zinc	Moderate	Consistent	120°C	Automotive
Zinc Nickel	Very High	Stable	180°C	Offshore
PTFE / Xylan	Excellent	Low friction	260°C	Oil & Gas
Cadmium (restricted)	High	Excellent	Aerospace	Controlled usage
Passivation (SS)	High	Stable	400°C	Marine
Electropolishing	Very High	Smooth	450°C	Pharma

SM Fasteners selects coating processes to maintain mechanical integrity and avoid hydrogen embrittlement.

24. Hydrogen Embrittlement Prevention

Critical for high-strength socket screws.

Control Measures:

• Baking after electroplating
• Controlled pickling exposure
• Alternative coatings (mechanical zinc, ZnNi)
• Hardness monitoring

25. Galling Prevention (Stainless Fasteners)

Galling risk increases with:

• High preload
• Similar material pairing
• Poor lubrication

Solutions:

• MoS₂ lubrication
• Silver plating
• Controlled tightening speed
• Dissimilar material pairing

26. Manufacturing Traceability System

SM Fasteners integrates traceability aligned with ISO 9001 systems:

Stage	Traceability Method
Raw material	Heat number
Forging	Batch ID
Heat treatment	Furnace log
Coating	Process record
Inspection	Report reference
Dispatch	Packing trace code

27. Custom Engineering Capability — SM Fasteners

Capabilities include:

• Non-standard head geometry
• Special thread forms
• High-temperature alloys
• PEEK precision fasteners
• Coated EPC project fasteners
• Project-specific marking & coding

Designed to support global EPC procurement specifications.

28. Inspection & Quality Control Framework

Socket Head Cap Screws supplied to industrial projects must pass multi-stage verification before acceptance in EPC, Oil & Gas, power, or infrastructure installations.

SM Fasteners operates within an ISO 9001 certified quality management system, integrating inspection checkpoints from raw material intake through final dispatch.

28.1 Inspection Philosophy

Quality assurance objectives:

• Dimensional conformity
• Mechanical property verification
• Metallurgical integrity
• Surface condition validation
• Full traceability

Industrial fasteners are treated as load-bearing engineered components, not commercial hardware.

29. Incoming Material Inspection

Raw Material Control

Inspection Activity	Method	Purpose
MTC verification	EN 10204 3.1	Chemical traceability
Chemical analysis	Spectrometer	Alloy confirmation
Ultrasonic testing	UT scan	Internal defect detection
Visual inspection	Surface check	Rolling defects
PMI testing	XRF analyzer	Grade validation

All materials remain traceable via heat numbers maintained throughout production.

30. In-Process Dimensional Inspection

Critical Dimensional Controls

Parameter	Inspection Tool
Thread diameter	GO/NO-GO gauges
Pitch accuracy	Thread measuring system
Head diameter	Digital micrometer
Head height	Height gauge
Socket depth	Plug gauge
Concentricity	Dial indicator
Length tolerance	Vernier / Optical comparator

ISO 4762 tolerance compliance ensures interchangeability across global installations.

31. Mechanical Testing Requirements

Mandatory Mechanical Testing

Test	Standard	Purpose
Tensile Test	ISO 898-1 / ASTM A574	Strength verification
Proof Load Test	ISO 898	Elastic behavior confirmation
Hardness Test	Rockwell/Vickers	Heat treatment validation
Impact Test	ASTM E23	Low temperature reliability
Wedge Tensile Test	ISO method	Head integrity

32. Non-Destructive Testing (NDT)

High criticality projects require additional inspection.

NDT Method	Application
Magnetic Particle (MPI)	Crack detection
Dye Penetrant (DPT)	Surface discontinuities
Ultrasonic Testing	Large diameter bolts
Eddy Current	Surface integrity
PMI	Alloy verification

SM Fasteners supports third-party inspections including TPI agencies and project consultants.

33. Documentation & Certification Package

Typical EPC documentation supplied:

• EN 10204 3.1 Material Test Certificate
• Heat Treatment Report
• Mechanical Test Report
• Coating Thickness Report
• Dimensional Inspection Report
• Certificate of Conformity (CoC)
• PMI Report (when specified)

3.2 certification available with third-party witnessing.

34. Mechanical Properties Table — Grade Wise

Property Class	Proof Stress MPa	Yield MPa	Tensile MPa	Elongation %
8.8	580	640	800	12
10.9	830	900	1000	9
12.9	970	1080	1200	8
A2-70	450	450	700	40
A4-80	600	600	800	35

35. Proof Load & Tensile Capacity (Typical Values)

Size	Tensile Area mm²	Proof Load (kN) Class 10.9	Ultimate Load (kN) Class 12.9
M6	20.1	16.6	24.1
M8	36.6	30.4	43.9
M10	58	48.1	69.6
M12	84.3	70	101
M16	157	130	188
M20	245	203	294
M24	353	292	424

36. Tightening Torque Chart

(Approximate values — lubricated condition, K ≈ 0.16)

Size	Torque Class 8.8 (Nm)	Torque Class 10.9 (Nm)	Torque Class 12.9 (Nm)
M6	10	17	20
M8	25	41	49
M10	49	81	97
M12	85	141	169
M16	210	350	420
M20	410	680	815
M24	710	1180	1415

Actual torque must consider coating friction coefficients.

37. Preload Calculation — Worked Example

Example:

Bolt: M12 Class 10.9
Torque Applied: 140 Nm
Nut Factor: 0.16
Diameter: 12 mm$$F = \frac{T}{K \times D}$$

$$F = \frac{140}{0.16 \times 0.012}$$

$$F = 72,916\,N \approx 73\,kN$$

Result:
Joint preload ≈ 73 kN clamp force

Engineering practice recommends preload ≈ 70–75% of proof load.

38. Corrosion Resistance vs Environment

Environment	Carbon Steel	SS A2	SS A4	Duplex	Super Duplex	Nickel Alloy
Indoor	Good	Excellent	Excellent	Excellent	Excellent	Excellent
Outdoor	Moderate	Excellent	Excellent	Excellent	Excellent	Excellent
Seawater	Poor	Moderate	Good	Excellent	Outstanding	Outstanding
Acidic	Poor	Moderate	Good	Very Good	Excellent	Outstanding
H₂S Service	Controlled	Limited	Limited	Good	Excellent	Excellent
High Temp	Moderate	Good	Good	Good	Good	Outstanding

39. Thread Standards & Tolerance Summary

Thread Type	Standard	Typical Tolerance
Metric Coarse	ISO 261	6g / 6H
Metric Fine	ISO 965	4g6g
UNC	ASME B1.1	2A / 2B
UNF	ASME B1.1	3A / 3B
BSW	BS 84	Medium
BSF	BS 84	Fine precision

40. Surface Finish Performance Comparison

Finish	Salt Spray Resistance	Torque Consistency	Hydrogen Risk
Black Oxide	24 hrs	Stable	None
Zinc Plated	72–120 hrs	Variable	Medium
HDG	500+ hrs	High friction	Low
Zinc Nickel	1000+ hrs	Excellent	Low
PTFE	1000+ hrs	Excellent	None
Passivated SS	Excellent	Stable	None

41. Weight Chart — Socket Head Cap Screws

(Aligned with SM Fasteners engineering datasets)

Size	Length 30mm (kg/100 pcs)	Weight per Piece (g)
M6	0.72	7.2
M8	1.45	14.5
M10	2.85	28.5
M12	4.8	48
M16	9.6	96
M20	15.8	158
M24	24.5	245

Weights assist EPC logistics planning and container load calculations.

42. Industry Applications Mapping

Construction & Structural Steel

• Steel connections
• Modular structures
• Heavy fabrication

Oil & Gas (Upstream–Downstream)

• Valve assemblies
• Pump housings
• Compressor systems
• Offshore platforms

NACE compliant grades supplied where required.

Power Generation

• Turbine casings
• Generator frames
• Boiler equipment
• Renewable energy systems

Petrochemical & Chemical Processing

• Reactor assemblies
• Heat exchangers
• Flange connections

LNG & Offshore

• Cryogenic systems
• Subsea equipment
• Marine loading arms

Automotive & Heavy Equipment

• Engine blocks
• Gearboxes
• Hydraulic systems

Railways & Infrastructure

• Track equipment
• Signaling structures
• Bridge assemblies

Shipbuilding

• Deck equipment
• Engine mounting
• Corrosion-critical zones

PEEK Fastener Applications

SM Fasteners provides engineered PEEK socket head screws for:

• Semiconductor manufacturing
• MRI systems
• Chemical reactors
• Electrical insulation assemblies
• Lightweight aerospace components

43. Export Packaging & Global Logistics

Industrial packaging protects preload reliability and surface condition.

Standard Packaging Methods

Method	Purpose
VCI packaging	Corrosion protection
Thread protectors	Prevent damage
Heat number labeling	Traceability
Moisture barrier bags	Marine shipment
Batch coding	QA tracking

Export Crating

• ISPM-15 compliant wooden crates
• Vacuum sealing (on request)
• Container optimization for EPC logistics

44. SM FASTENERS — Global Supply Capability

SM Fasteners integrates:

• ISO 9001 certified quality systems
• MSME registered manufacturing infrastructure
• UKAF accredited certification framework
• Advanced alloy manufacturing capability
• Custom engineering support

Capabilities include:

• Project-specific manufacturing
• Special coatings
• Exotic alloy machining
• PEEK precision fasteners
• Third-party inspection coordination

45. Engineering Selection Checklist (Procurement Use)

Parameter	Verification
Standard	ISO / ASTM / DIN / BS
Property Class	8.8 / 10.9 / 12.9
Material	Environment compatible
Coating	Corrosion requirement
Certification	EN 10204 3.1
Inspection	Mechanical + NDT
Traceability	Heat number verified
Packaging	Export compliant

ENGINEERING CONCLUSION

Socket Head Cap Screws represent high-precision structural fastening systems requiring:

• Controlled preload engineering
• Accurate material selection
• Certified manufacturing
• Documented inspection compliance

Through integrated engineering knowledge, advanced material capability, and globally aligned quality systems, SM Fasteners delivers socket head cap screws suitable for critical industrial applications and international EPC procurement environments.
