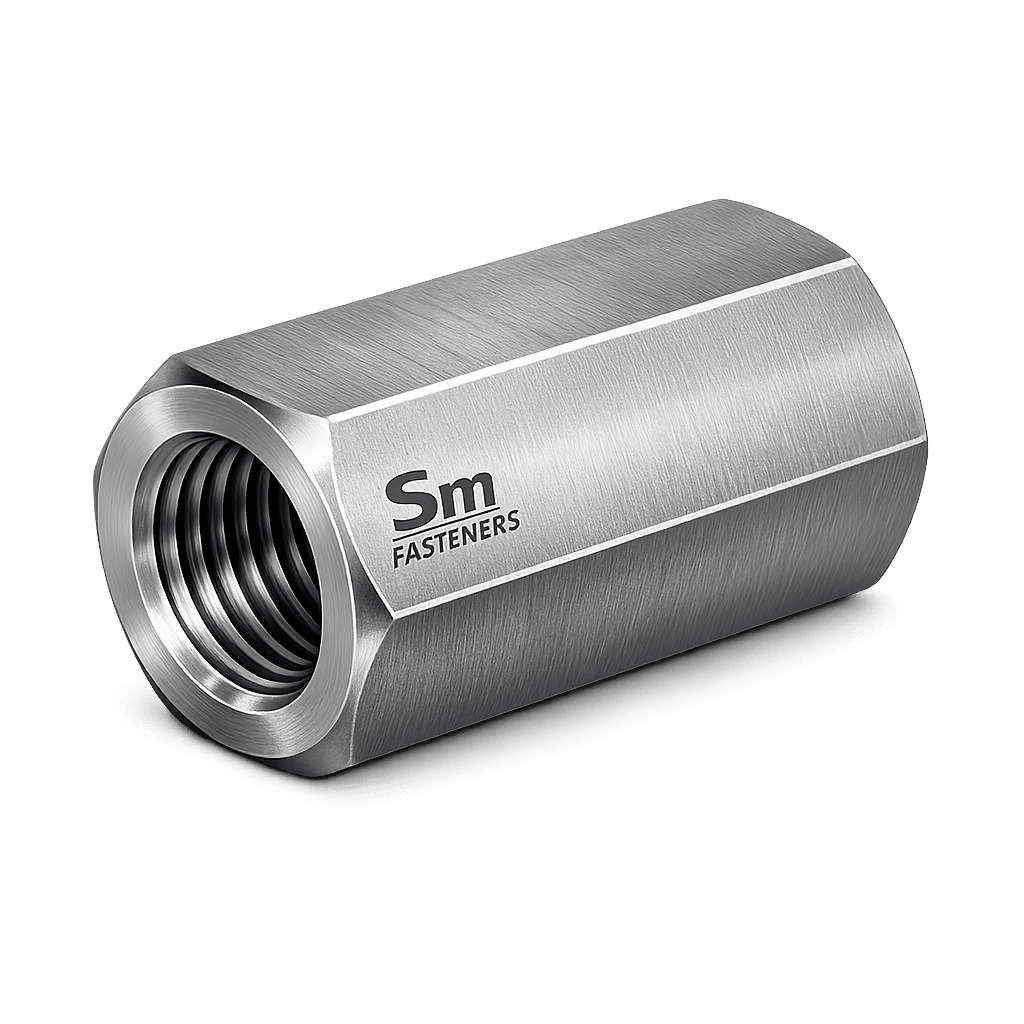

Coupling Nut

ENGINEERING FUNDAMENTALS

1. Industry Context

Coupling nuts are critical mechanical fastening components used for axial joining of threaded members, primarily threaded rods, studs, anchor bolts, tie rods, and extension assemblies. Unlike standard hex nuts designed for clamping, coupling nuts function as load-transmitting connectors that extend threaded assemblies while maintaining structural continuity.

They are extensively deployed in:

• Structural steel erection
• Bridge tensioning systems
• Oil & gas piping supports
• Heavy machinery alignment systems
• Electrical transmission towers
• Offshore modular construction
• Maintenance extension repairs

Modern EPC projects increasingly rely on coupling nuts because prefabricated assemblies require controlled extension, field adjustability, and alignment correction without replacing entire threaded members.

Within industrial procurement frameworks, coupling nuts are categorized as:

• Critical load-bearing connectors
• Alignment hardware
• Adjustable tensioning elements

SM Fasteners manufactures precision coupling nuts engineered for global industrial compliance, supporting projects requiring traceable metallurgy, controlled mechanical properties, and export-ready quality systems.

2. Technical Definition

A Coupling Nut is defined as:

A long internally threaded fastener designed to join two externally threaded components in axial alignment while transmitting tensile loads across the connection.

Key Functional Characteristics

Parameter	Description
Primary Function	Threaded extension
Load Direction	Axial tension
Engagement Length	Extended (≥ 3× nominal diameter typical)
Geometry	Hexagonal or round body
Threading	Through-threaded
Load Transfer	Thread shear + bearing

Unlike jam nuts or heavy hex nuts, coupling nuts act as structural connectors, not merely locking elements.

3. Functional Role in Assemblies

Coupling nuts enable:

3.1 Threaded Rod Extension

Used when required rod length exceeds transportation or manufacturing limits.

3.2 Installation Adjustability

Allows:

• Fine alignment
• Leveling
• Field correction

3.3 Maintenance Repair

Damaged threaded sections may be replaced without dismantling entire assemblies.

3.4 Tensioning Applications

Common in:

• Bracing systems
• Cable supports
• Structural tie rods

4. Load Mechanics & Force Behavior

The mechanical behavior of coupling nuts differs fundamentally from conventional nuts.

Primary Forces Acting

1. Axial Tensile Force
2. Thread Shear Stress
3. Bearing Stress
4. Frictional Resistance
5. Bending Moment (Misalignment)

4.1 Load Transmission Mechanism

Load path:

Load transfer occurs via:

• Thread flank contact
• Shear distribution along engagement length

4.2 Thread Engagement Requirement

Engineering rule:$$L_e \geq 1.5D \text{ (minimum)}$$

Industrial best practice:$$L_e = 3D \text{ to } 4D$$

Where:

• $L_e$Le​ = Engagement length
• $D$D = Nominal diameter

Long engagement ensures:

• Uniform stress distribution
• Prevention of thread stripping
• Improved fatigue resistance

4.3 Preload & Axial Force Behavior

Preload generated by torque controls:

• Joint rigidity
• Vibration resistance
• Fatigue life

Preload equation:$$F_p = \frac{T}{K \times D}$$

Where:

Symbol	Meaning
$F_p$	Preload force
$T$	Applied torque
$K$	Nut factor
$D$	Nominal diameter

Typical Nut Factor:

Condition	K Value
Dry steel	0.20–0.25
Zinc coated	0.18
Lubricated	0.12–0.16

Worked Engineering Example

Given:

• Diameter = M24 (0.024 m)
• Torque = 650 Nm
• Lubricated condition (K = 0.15)

$$F_p = \frac{650}{0.15 \times 0.024}$$​ $$F_p \approx 180\,555 \text{ N}$$

Result:

≈ 180 kN preload

4.4 Stress Distribution Along Threads

Coupling nuts distribute load unevenly:

• First engaged thread carries ~30%
• Second ~20%
• Remaining progressively less

Long nuts reduce peak stress concentration — a major reason they outperform standard nuts in extension joints.

4.5 Failure Mechanisms

1. Thread Stripping

Occurs when:

• Engagement insufficient
• Material hardness mismatch exists

2. Tensile Fracture

Occurs when coupling nut strength < rod strength.

Engineering rule:

Coupling nut material grade must be equal or higher than joined rod.

3. Fatigue Failure

Caused by:

• Cyclic loading
• Poor preload control
• Misalignment

Common in:

• Wind towers
• Offshore structures
• Vibrating equipment

4. Hydrogen Embrittlement

Risk zones:

• High strength carbon steel (>1000 MPa)
• Electroplated fasteners

Mitigation:

• Controlled baking
• Mechanical coatings

5. Stress Corrosion Cracking (SCC)

Occurs in:

• Chloride environments
• H₂S service
• Elevated temperatures

Solution:

• Duplex / Super Duplex
• Nickel alloys
• NACE compliant materials

SM Fasteners supplies sour-service compatible coupling nuts upon project specification.

5. Joint Design Principles

5.1 Strength Matching

Design rule:

Component	Requirement
Rod Strength	≤ Nut Strength
Thread Class	Compatible
Engagement	≥ 3D preferred

5.2 Alignment Control

Misalignment produces bending stress:$$\sigma_b = \frac{M \times c}{I}$$

Therefore:

• Straightness tolerance is critical
• Precision thread concentricity required

SM Fasteners maintains controlled machining tolerances ensuring concentric thread alignment.

5.3 Thread Class Compatibility

Common combinations:

System	Class
ISO Metric	6H / 6g
UNC	2B / 2A
UNF	2B / 2A
Precision	3B / 3A

Improper pairing results in:

• Reduced preload
• Fretting
• Premature fatigue

5.4 Load Path Optimization

Best practices:

• Equal engagement both sides
• Minimum exposed threads
• Avoid eccentric loading
• Use hardened washers when tensioning

5.5 Design Safety Factors

Typical industrial design factors:

Industry	Safety Factor
Structural Steel	2.0–2.5
Oil & Gas	3.0
Offshore	3.5–4.0
Pressure Systems	4.0+

5.6 Thermal Expansion Consideration

Different materials expand differently:$$\Delta L = \alpha L \Delta T$$

Coupling nuts allow controlled extension compensation in:

• Steam pipelines
• Heat exchangers
• Furnace assemblies

5.7 Installation Best Practices

Engineering installation sequence:

1. Verify thread cleanliness
2. Apply specified lubricant
3. Engage equal thread length
4. Torque progressively
5. Verify engagement visually

6. Functional Selection Criteria

Engineers select coupling nuts based on:

Parameter	Engineering Impact
Load magnitude	Determines grade
Environment	Determines material
Temperature	Limits metallurgy
Corrosion exposure	Determines coating/alloy
Installation method	Determines geometry
Inspection requirement	Determines certification

SM Fasteners Engineering Capability

SM Fasteners integrates:

• ISO 9001 quality management
• Certified raw material traceability
• Advanced alloy manufacturing
• Precision thread machining
• EPC-ready documentation

Coupling nuts are produced to support global infrastructure, energy, petrochemical, and heavy engineering projects requiring reliable structural continuity.

7. Product Types and Variants

Coupling nuts are manufactured in multiple configurations depending on load condition, installation accessibility, alignment tolerance, and environmental exposure.

Unlike standard hex nuts, coupling nut geometry is engineered primarily for thread engagement efficiency and axial load transmission rather than wrenching convenience alone.

7.1 Standard Hex Coupling Nut

Most widely used industrial configuration

Characteristics

• Hexagonal outer profile
• Full internal threading
• Length ≥ 3 × nominal diameter
• Standard wrench installation
• Suitable for torque-controlled tightening

Applications

• Structural tie rods
• Threaded rod extensions
• Anchor bolt joining
• Equipment mounting systems

Engineering Advantage

• High torque transfer capability
• Easy field installation
• Compatible with automated tightening tools

7.2 Heavy Hex Coupling Nut

Designed for high-load structural applications.

Features

• Increased across-flat dimension
• Greater wall thickness
• Higher torque capacity
• Reduced distortion risk

Typical Use

• Offshore modules
• Bridge tension members
• Heavy lifting assemblies
• Power plant structures

7.3 Reduced Hex Coupling Nut

Used where installation clearance is limited.

Characteristics

• Smaller wrench size
• Reduced external diameter
• Maintains full internal engagement

Limitation

Lower torsional strength compared to heavy hex.

7.4 Round Coupling Nut (Turnbuckle Style)

Used primarily in adjustment and tensioning systems.

Features

• Cylindrical body
• Often drilled for pin wrench
• Allows rotational adjustment

Applications

• Cable bracing
• Rail signaling supports
• Suspension systems

7.5 Transition Coupling Nut (Different Threads)

Joins dissimilar thread sizes or standards.

Examples:

• Metric to UNC
• Metric to BSW
• Step-down or step-up connections

Used heavily in retrofit projects and international equipment integration.

7.6 Locking Coupling Nut

Includes additional locking features:

• Nylon insert
• Set screw
• Serrated interface
• Chemical locking compound

Used in vibration-intensive systems.

7.7 Extended-Length Structural Coupling Nut

Engineered for:

• High fatigue applications
• Seismic structures
• Wind turbine tension systems

Provides superior load distribution.

7.8 PEEK Coupling Nuts

Manufactured by SM Fasteners for specialized environments.

Advantages

• Electrical insulation
• Chemical resistance
• Lightweight assemblies
• Non-magnetic applications

Used in:

• Semiconductor plants
• Chemical dosing systems
• Medical equipment
• Offshore instrumentation

8. Dimensional Logic and Geometry

Coupling nut design is governed by thread engagement mechanics, not merely dimensional convenience.

8.1 Fundamental Geometry Parameters

Symbol	Description
D	Nominal thread diameter
P	Thread pitch
L	Overall nut length
S	Width across flats
E	Width across corners
Le	Thread engagement length

8.2 Standard Length Logic

Engineering guideline:$$L = 3D \text{ (minimum)}$$

Heavy-duty applications:$$L = 4D \text{ to } 5D$$

Reason:

• Reduced thread shear stress
• Improved fatigue resistance
• Uniform load transfer

8.3 Dimensional Specification Table

(Typical ISO Metric Series — Engineering Reference)

Thread Size	Pitch (mm)	Length L (mm)	Width Across Flats S (mm)	Across Corners E (mm)
M6	1.0	18	10	11.5
M8	1.25	24	13	15
M10	1.5	30	17	19.6
M12	1.75	36	19	22
M16	2.0	48	24	27.7
M20	2.5	60	30	34.6
M24	3.0	72	36	41.6
M30	3.5	90	46	53
M36	4.0	108	55	63.5

Dimensions may be customized by SM Fasteners according to EPC project specifications.

8.4 Thread Engagement Engineering

Recommended engagement per side:

Diameter	Engagement Length
≤ M12	1.5D
M16–M30	2D
≥ M36	2.5D

Balanced engagement prevents eccentric stress loading.

9. Applicable International Standards

Coupling nuts are governed by multiple global fastener standards depending on project region.

9.1 ISO Standards

Standard	Scope
ISO 898-2	Mechanical properties of nuts
ISO 4033	Hex nuts geometry reference
ISO 965	Metric thread tolerances
ISO 724	Metric thread dimensions
ISO 3506	Stainless steel fasteners
ISO 4759	Tolerances

9.2 DIN Standards

DIN Standard	Description
DIN 6334	Hexagon coupling nuts
DIN 934	Reference hex nut geometry
DIN 13	Metric thread system

DIN 6334 remains the primary reference for industrial coupling nuts worldwide.

9.3 ASTM Standards (USA)

ASTM	Application
ASTM A563	Carbon steel nuts
ASTM A194	Alloy steel nuts
ASTM F594	Stainless steel nuts
ASTM A320	Low-temperature service

Used heavily in Oil & Gas and petrochemical EPC projects.

9.4 British Standards (BS)

Standard	Description
BS 4190	Hexagon nuts
BS 3643	Unified thread standards
BS 84	Whitworth threads

9.5 Unified Thread Standards

Thread Type	Usage
UNC	General industrial
UNF	High fatigue resistance
UNEF	Aerospace precision
BSW	Legacy systems
BSF	Fine thread UK equipment

SM Fasteners manufactures coupling nuts compatible with all global thread systems.

10. Thread Standards & Tolerance Table

System	Thread Class	Internal Tolerance	Typical Use
ISO Metric	6H	Standard fit	Structural
ISO Precision	5H	Close fit	Machinery
UNC	2B	General purpose	Oil & Gas
UNF	2B	Fine thread	Vibration service
BSW	Medium fit	Legacy	Infrastructure
BSF	Fine fit	Precision	Rail & marine

11. Mechanical Property Classes

Property class selection governs allowable preload and tensile performance.

ISO Property Classes

Class	Proof Stress (MPa)	Minimum Tensile Strength (MPa)	Typical Use
5	500	500	Light structural
8	800	800	General engineering
10	1000	1000	Heavy machinery
12	1200	1200	Critical load joints

ASTM Equivalent Grades

ASTM Grade	Equivalent ISO	Application
A563 Grade A	Class 5	Structural
A563 Grade DH	Class 10	High strength
A194 2H	Class 10/12	Pressure systems
A194 8	Stainless equivalent	Corrosion service

12. Proof Load & Tensile Capacity Table

(Engineering Reference Values)

Size	Property Class	Proof Load (kN)	Ultimate Tensile (kN)
M12	8	54	67
M16	8	100	125
M20	8	156	195
M24	10	225	281
M30	10	350	437
M36	10	510	637

Actual allowable load depends on threaded rod strength and engagement length.

13. Dimensional Tolerance Control

Critical tolerance controls include:

• Thread pitch diameter
• Concentricity
• Straightness
• Surface finish
• Length tolerance

Typical tolerance class:

$$ISO\ 4759\text{-}1$$

SM Fasteners uses calibrated gauges and controlled machining environments to maintain tolerance compliance for EPC acceptance.

14. Weight Chart — Coupling Nuts

(Aligned with SM Fasteners Manufacturing Data — Approximate Values)

Size	Length (mm)	Weight/Pc (kg)	Weight/100 pcs (kg)
M8	24	0.015	1.5
M10	30	0.028	2.8
M12	36	0.050	5.0
M16	48	0.115	11.5
M20	60	0.220	22
M24	72	0.380	38
M30	90	0.750	75
M36	108	1.35	135

Weights vary depending on alloy density and coating thickness.

15. Interchangeability Considerations

Critical during international procurement.

Key Risks

• Metric vs UNC mismatch
• Pitch differences
• Property class incompatibility
• Coating thickness affecting fit

Engineering practice requires:

• Thread verification gauges
• Material certification review
• Mechanical property confirmation

SM Fasteners supports global interchangeability through controlled manufacturing aligned with ISO, DIN, ASTM, and BS specifications.

16. Geometry Influence on Performance

Geometry Feature	Engineering Impact
Longer length	Better fatigue life
Thick wall	Prevents bursting
Fine thread	Higher preload
Heavy hex	Improved torque control
Precision threads	Reduced galling

17. Engineering Selection Summary

Coupling nut selection must consider:

1. Load requirement
2. Thread standard compatibility
3. Environmental exposure
4. Required preload
5. Inspection class
6. Certification requirement

SM Fasteners provides engineering support for customized coupling nuts including:

• Non-standard lengths
• Exotic alloys
• PEEK engineered fasteners
• EPC-specific dimensional control

18. Material Grades and Selection Criteria

Material selection for coupling nuts directly determines:

• Load capacity
• Corrosion resistance
• Temperature stability
• Fatigue life
• Sour service compatibility
• Inspection acceptance in EPC projects

Because coupling nuts act as load-transfer connectors, improper material selection can result in catastrophic joint failure even when the threaded rods remain intact.

SM Fasteners manufactures coupling nuts across the full industrial metallurgy spectrum, supporting structural, offshore, chemical, and high-temperature environments.

18.1 Industrial Material Range

Carbon Steel

Grade	Standard	Typical Application
C35 / C45	DIN / EN	Structural assemblies
ASTM A563 Gr A	ASTM	Construction
ASTM A194 2H	ASTM	Pressure systems
EN 1.0503	EN	General engineering

Advantages

• High strength
• Cost efficiency
• Excellent machinability

Limitations

• Requires protective coating
• Limited corrosion resistance

Alloy Steel

Grade	Standard	Application
ASTM A194 2H	Oil & Gas
ASTM A194 7	High temperature
42CrMo4	Heavy equipment
EN 1.7225	Power plants

Benefits

• Higher tensile strength
• Improved fatigue resistance
• Elevated temperature capability

Stainless Steel

Grade	Equivalent	Key Features
AISI 304	A2-70	General corrosion resistance
AISI 316	A4-80	Marine & chemical
316L	Low carbon	Welded assemblies
321	Stabilized	High temperature

Used extensively in:

• Chemical plants
• Food processing
• Offshore equipment
• Water treatment systems

Duplex & Super Duplex Stainless Steel

Grade	UNS	Application
Duplex 2205	S32205	Offshore structures
Super Duplex 2507	S32750	Seawater systems

Advantages:

• High strength (~2× austenitic SS)
• Excellent chloride resistance
• SCC resistance

Nickel Alloys (SM Fasteners Capability)

Alloy	Service Condition
Inconel 625	High temperature + corrosion
Incoloy 825	Acidic environments
Hastelloy C276	Aggressive chemical service
Monel 400	Seawater exposure
Nickel 200	Alkali service
SMO 254	High chloride environments

Used in LNG, refinery reactors, and offshore subsea systems.

PEEK Coupling Nuts

SM Fasteners manufactures PEEK (Polyether Ether Ketone) coupling nuts for specialized applications.

Engineering Properties

• Temperature capability: up to 260°C
• Electrically insulating
• Chemical resistant
• Lightweight
• Non-magnetic

Applications include:

• Semiconductor manufacturing
• Medical equipment
• Chemical dosing lines
• Instrumentation systems

18.2 Material Selection Matrix

Environment	Recommended Material
Indoor structural	Carbon steel
Outdoor construction	Zinc coated carbon steel
Marine atmosphere	SS316 / Duplex
Offshore seawater	Super Duplex
Acid plant	Hastelloy
LNG cryogenic	ASTM A320 compatible
H₂S sour service	NACE compliant alloys
Electrical isolation	PEEK

18.3 Material Comparison Table

Material	UTS (MPa)	Yield (MPa)	Corrosion Resistance	Cost Level	Typical Industry
Carbon Steel	500–800	300–600	Low	Low	Construction
Alloy Steel	800–1200	700–1000	Medium	Medium	Power
SS304	~700	~450	Good	Medium	Equipment
SS316	~800	~550	Very Good	Medium-High	Marine
Duplex 2205	~900	~650	Excellent	High	Offshore
Super Duplex	>1000	>750	Outstanding	High	Subsea
Inconel 625	>1000	>700	Extreme	Very High	LNG
PEEK	—	—	Excellent chemical	High	Electronics

19. Mechanical Properties (Grade-Wise)

ISO Nut Property Classes

Class	Proof Stress (MPa)	Hardness Range	Application
5	500	120–220 HB	Light duty
8	800	200–300 HB	Structural
10	1000	280–340 HB	Heavy load
12	1200	330–390 HB	Critical joints

Engineering rule:

Coupling nut property class ≥ threaded rod property class.

20. Heat Treatment Processes

Heat treatment controls:

• Strength
• Toughness
• Fatigue resistance
• Hydrogen embrittlement risk

SM Fasteners applies controlled heat treatment under ISO 9001 quality systems.

20.1 Normalizing

Purpose:

• Grain refinement
• Uniform structure

Applied to:

• Carbon steel coupling nuts.

20.2 Quenching & Tempering (Q&T)

Primary process for high-strength nuts.

Steps:

1. Austenitizing
2. Oil or polymer quench
3. Tempering

Results:

• High tensile strength
• Improved toughness
• Controlled hardness

20.3 Solution Annealing (Stainless Steel)

Used for:

• Austenitic grades
• Duplex alloys

Benefits:

• Restores corrosion resistance
• Prevents carbide precipitation.

20.4 Stress Relieving

Applied after machining or cold forming.

Reduces:

• Residual stresses
• Distortion risk.

20.5 Hydrogen Embrittlement Relief Baking

Mandatory for:

• Electroplated high-strength fasteners.

Typical cycle:

• 190–220°C
• 4–24 hours.

20.6 Hardness Limits for Sour Service

Per NACE MR0175 / ISO 15156:

Material	Max Hardness
Carbon/Alloy Steel	22 HRC
Stainless Steel	Controlled condition
Duplex	Heat-treatment controlled

SM Fasteners supplies NACE-compliant coupling nuts upon project requirement.

21. End-to-End Manufacturing Workflow

SM Fasteners follows a fully traceable manufacturing chain.

21.1 Raw Material Procurement

Incoming material includes:

• Mill Test Certificate (MTC)
• Heat number traceability
• Chemical composition verification
• PMI confirmation (critical alloys)

21.2 Material Inspection

Checks performed:

• Spectrometer analysis
• Ultrasonic inspection
• Visual examination
• Dimensional verification

21.3 Forging / Forming

Two primary methods:

Hot Forging

Used for:

• Carbon steel
• Alloy steel
• Large diameters

Advantages:

• Grain flow alignment
• Higher mechanical strength

Machining from Bar Stock

Used for:

• Stainless
• Duplex
• Nickel alloys
• Custom dimensions

Ensures dimensional precision.

21.4 Thread Manufacturing

Thread Rolling (Preferred)

Benefits:

• Compressive surface stress
• Increased fatigue strength
• Superior surface finish

Thread Cutting

Used for:

• Large sizes
• Exotic alloys
• Custom pitch requirements.

21.5 Heat Treatment

Performed in controlled furnaces with:

• Temperature monitoring
• Batch traceability
• Hardness verification

21.6 Machining & Finishing

Processes include:

• Facing
• Chamfering
• Deburring
• Surface preparation

Critical to prevent galling and ensure smooth engagement.

21.7 Final Inspection

Every production batch undergoes:

• Thread gauge inspection
• Dimensional measurement
• Mechanical testing
• Visual inspection

21.8 Traceability System

Each batch linked to:

• Heat number
• Manufacturing lot
• Inspection records
• Certification package

22. Surface Finishing & Coatings

Surface engineering directly influences:

• Corrosion life
• Friction coefficient
• Torque–tension relationship

22.1 Common Surface Finishes

Finish	Thickness	Corrosion Protection	Typical Use
Plain/Oiled	—	Low	Indoor
Black Oxide	1 µm	Low	Machinery
Zinc Plated	5–12 µm	Moderate	Construction
Hot Dip Galvanized	45–85 µm	High	Structural outdoor
Mechanical Galvanized	20–50 µm	High	Structural
Dacromet/Geomet	Thin film	Very High	Automotive
PTFE Coated	Low friction	Chemical	Offshore
Xylan	Anti-galling	Marine	Oil & Gas
Passivation	—	Stainless	Chemical plants

22.2 Surface Finish Performance Comparison

Coating	Salt Spray Resistance	Friction Stability	Hydrogen Risk	Offshore Suitability
Zinc Plated	Medium	Moderate	Medium	Limited
HDG	High	Variable	Low	Good
PTFE	Very High	Excellent	None	Excellent
Xylan	Very High	Stable	None	Excellent
Passivated SS	Excellent	Stable	None	Excellent

22.3 Coating Selection vs Environment

Environment	Recommended Finish
Indoor dry	Black oxide
Outdoor construction	HDG
Marine atmosphere	SS316 / PTFE
Offshore platform	Xylan
Chemical exposure	Passivated stainless
High temperature	Uncoated alloy steel

23. Galling Prevention (Critical for Coupling Nuts)

Long engagement increases galling risk, especially for stainless steel.

Mitigation methods:

• Controlled surface finish
• Molybdenum disulfide lubricant
• Silver plating (critical service)
• PTFE coating
• Different hardness pairing

SM Fasteners applies controlled finishing practices to ensure smooth engagement in stainless and nickel alloy coupling nuts.

24. Manufacturing Capability Integration — SM Fasteners

SM Fasteners supports global industrial procurement through:

• ISO 9001 certified manufacturing system
• MSME registered production facility
• UKAF accredited quality assurance
• Custom fastener engineering
• Advanced alloy capability
• PEEK precision fastener manufacturing
• Full traceability from raw material to shipment

Manufacturing flexibility includes:

• Non-standard lengths
• Special thread classes
• Transition thread coupling nuts
• High-strength custom geometries
• EPC project-specific specifications

25. Inspection & Quality Control Philosophy

Coupling nuts used in EPC, Oil & Gas, power, and structural projects are classified as load-critical fastening components. Their acceptance depends not only on dimensional accuracy but also on traceable metallurgy, verified mechanical performance, and documented compliance.

SM Fasteners integrates inspection processes directly within an ISO 9001 certified quality management system, ensuring repeatable manufacturing control from raw material to export dispatch.

25.1 Incoming Material Inspection

Every production batch begins with raw material validation.

Verification Activities

Inspection	Purpose
Mill Test Certificate Review	Chemical & mechanical verification
Heat Number Traceability	Full production tracking
Positive Material Identification (PMI)	Alloy confirmation
Visual Inspection	Surface defect control
Ultrasonic Testing (UT)	Internal defect detection

Applicable particularly for:

• Duplex & Super Duplex
• Nickel alloys
• Pressure system fasteners

25.2 In-Process Manufacturing Inspection

Critical control points during manufacturing:

Stage	Inspection Method
Forging	Dimensional sampling
Machining	Concentricity & straightness
Threading	GO/NO-GO gauges
Heat Treatment	Hardness verification
Coating	Thickness measurement

Measurement tools include:

• Coordinate Measuring Machines (CMM)
• Thread plug gauges
• Optical comparators
• Surface roughness testers

25.3 Final Inspection & Mechanical Testing

Final inspection ensures compliance with ISO, ASTM, DIN, and BS requirements.

Mechanical Testing

Test	Standard	Objective
Proof Load Test	ISO 898-2	Load capability
Tensile Test	ASTM	Strength verification
Hardness Test	Rockwell/Brinell	Heat treatment validation
Impact Test	Charpy	Low-temperature performance
Torque Test	Internal	Installation behavior

25.4 Non-Destructive Testing (NDT)

Applied when project specifications require enhanced verification.

Method	Purpose
Magnetic Particle Inspection (MPI)	Surface crack detection
Dye Penetrant Test (PT)	Micro defect detection
Ultrasonic Testing	Internal flaws
Eddy Current	Surface integrity

25.5 Dimensional Inspection Control

Critical tolerances verified:

• Thread pitch diameter
• Thread lead accuracy
• Engagement length
• Across flats dimension
• Concentricity

Typical acceptance standard:$$ISO\ 4759\text{-}1$$ISO 4759-1

25.6 Certification & Documentation Package

SM Fasteners supplies full EPC documentation.

Standard Documentation

• EN 10204 3.1 Material Test Certificate
• Heat Treatment Report
• Mechanical Test Report
• Coating Inspection Report
• Dimensional Inspection Report
• Certificate of Conformance (CoC)
• PMI Report (when required)

Optional (Project Specific)

• EN 10204 3.2 Third-Party Certification
• NACE MR0175 Compliance Declaration
• ITP & Quality Dossier
• Traceability Records

26. Failure Modes & Reliability Control

Understanding failure mechanisms ensures proper specification.

26.1 Fatigue Failure

Occurs under cyclic loading.

Mitigation

• Longer coupling nut length
• Controlled preload
• Rolled threads
• Proper lubrication

26.2 Thread Shear Failure

Causes:

• Insufficient engagement
• Material mismatch

Design requirement:$$L_e \ge 3D$$

26.3 Hydrogen Embrittlement

Risk materials:

• High strength plated carbon steel

Controls applied by SM Fasteners:

• Controlled plating process
• Post-plate baking
• Hardness monitoring

26.4 Stress Corrosion Cracking (SCC)

High risk environments:

• Chloride exposure
• Sour gas service
• Offshore installations

Recommended materials:

• Duplex stainless steel
• Super Duplex
• Nickel alloys

27. Industry Applications

27.1 Construction & Structural Steel

Used for:

• Tie rod systems
• Structural bracing
• Pre-engineered buildings
• Seismic reinforcement

Engineering requirement:
High-strength carbon/alloy steel coupling nuts with HDG coating.

27.2 Oil & Gas Industry

Upstream

• Wellhead structures
• Rig equipment

Midstream

• Pipe supports
• Compressor foundations

Downstream

• Refinery structures
• Reactor assemblies

Common materials:
ASTM A194 2H, SS316, Duplex.

27.3 Power Generation

Applications:

• Turbine alignment systems
• Boiler supports
• Transmission towers

Requirements:
High fatigue resistance and controlled preload.

27.4 Petrochemical & Chemical Processing

Exposure factors:

• Acids
• Chlorides
• Elevated temperature

Materials used:
Hastelloy, Incoloy, SMO 254, SS316L.

27.5 LNG & Offshore

Critical conditions:

• Cryogenic temperatures
• Salt spray
• Dynamic loading

Preferred solutions:

• Super Duplex coupling nuts
• Nickel alloy fasteners
• PTFE or Xylan coating

27.6 Automotive & Heavy Equipment

Functions:

• Frame alignment
• Suspension assemblies
• Equipment adjustment mechanisms

27.7 Railways & Infrastructure

Applications:

• Bridge tension rods
• Overhead electrification supports
• Signaling structures

27.8 Shipbuilding & Marine

Requirements:

• High corrosion resistance
• Anti-galling threads

Materials:
SS316, Duplex, Monel.

27.9 PEEK Fastener Applications

PEEK coupling nuts supplied by SM Fasteners are used where metal fasteners are unsuitable:

• Electrically insulated assemblies
• MRI equipment
• Chemical dosing equipment
• Semiconductor clean rooms

28. Corrosion Resistance vs Environment Table

Environment	Carbon Steel	SS304	SS316	Duplex	Super Duplex	Nickel Alloy	PEEK
Indoor Dry	Good	Excellent	Excellent	Excellent	Excellent	Excellent	Excellent
Outdoor	Moderate	Good	Very Good	Excellent	Excellent	Excellent	Excellent
Marine	Poor	Moderate	Good	Excellent	Outstanding	Outstanding	Excellent
Seawater	Poor	Poor	Good	Excellent	Outstanding	Outstanding	Excellent
Acidic	Poor	Moderate	Good	Excellent	Excellent	Outstanding	Outstanding
H₂S Sour	Limited	Controlled	Good	Excellent	Excellent	Outstanding	Excellent
Chemical Plant	Poor	Good	Excellent	Excellent	Excellent	Outstanding	Outstanding

29. Tightening Torque Chart (Engineering Reference)

(Lubricated Condition)

Size	Class 8 Torque (Nm)	Class 10 Torque (Nm)	Class 12 Torque (Nm)
M10	45	65	80
M12	80	115	145
M16	200	285	350
M20	390	550	690
M24	670	940	1180
M30	1350	1900	2400
M36	2350	3300	4150

Actual torque depends on lubrication, coating friction factor, and project specifications.

30. Preload Calculation — Engineering Method

Formula

$$F_p = \frac{T}{K \times D}$$

Where:

• $F_p$Fp​ = preload force
• $T$T = tightening torque
• $K$K = nut factor
• $D$D = nominal diameter

Worked Example (Industrial Case)

Given:

• Size: M20
• Torque: 550 Nm
• Lubricated K = 0.15
• Diameter = 0.020 m

$$F_p = \frac{550}{0.15 \times 0.020}$$ $$F_p ≈ 183\,000\ N$$

Result:

Preload ≈ 183 kN

31. Surface Finish Performance Comparison

Finish	Corrosion Life	Friction Control	Offshore Use
Plain	Low	Stable	No
Zinc Plated	Medium	Moderate	Limited
Hot Dip Galvanized	High	Variable	Yes
PTFE	Very High	Excellent	Yes
Xylan	Very High	Excellent	Yes
Passivated Stainless	Excellent	Stable	Yes

32. Thread Standards & Tolerances Summary

Thread System	Standard	Tolerance Class
Metric	ISO 965	6H
UNC	ASME B1.1	2B
UNF	ASME B1.1	2B
BSW	BS 84	Medium
BSF	BS 84	Fine

SM Fasteners manufactures coupling nuts compatible with global EPC thread requirements.

33. Weight Reference Table (SM Fasteners Data Alignment)

Size	Length	Weight/Pc (kg)	Weight/100 pcs (kg)
M10	30 mm	0.028	2.8
M12	36 mm	0.050	5.0
M16	48 mm	0.115	11.5
M20	60 mm	0.220	22
M24	72 mm	0.380	38
M30	90 mm	0.750	75
M36	108 mm	1.35	135

34. Export Packaging & Global Supply Capability

SM Fasteners provides export-ready packaging aligned with international logistics standards.

Industrial Packaging

• VCI corrosion protection
• Thread protectors
• Moisture barrier packing
• Batch identification labels

Export Crating

• ISPM-15 heat-treated wooden pallets
• Seaworthy packaging
• Containerized shipment readiness

35. Global Project Documentation Support

Provided with shipments:

• MTC (EN 10204 3.1 / 3.2)
• Inspection reports
• Heat treatment certification
• Coating compliance report
• Packing list & traceability data
• Certificate of Origin (if required)

36. SM FASTENERS — ENGINEERING & GLOBAL SUPPLY POSITIONING

SM Fasteners integrates:

• ISO 9001 certified manufacturing systems
• MSME registered industrial production
• UKAF accredited quality assurance
• Precision machining capability
• Advanced metallurgy expertise
• PEEK and exotic alloy manufacturing
• Custom fastener engineering
• EPC project documentation readiness

Coupling nuts supplied by SM Fasteners are engineered to meet requirements of:

• International EPC contractors
• Oil & Gas operators
• Power generation companies
• Infrastructure megaprojects
• OEM equipment manufacturers

The manufacturing and inspection framework demonstrates full lifecycle control — from material verification to export shipment, supporting technically demanding global industrial applications.
